Heavy-Duty Slides_MS600-HD2071-1

Heavy-Duty Slides_MS600-HD2071-1

0,00 €

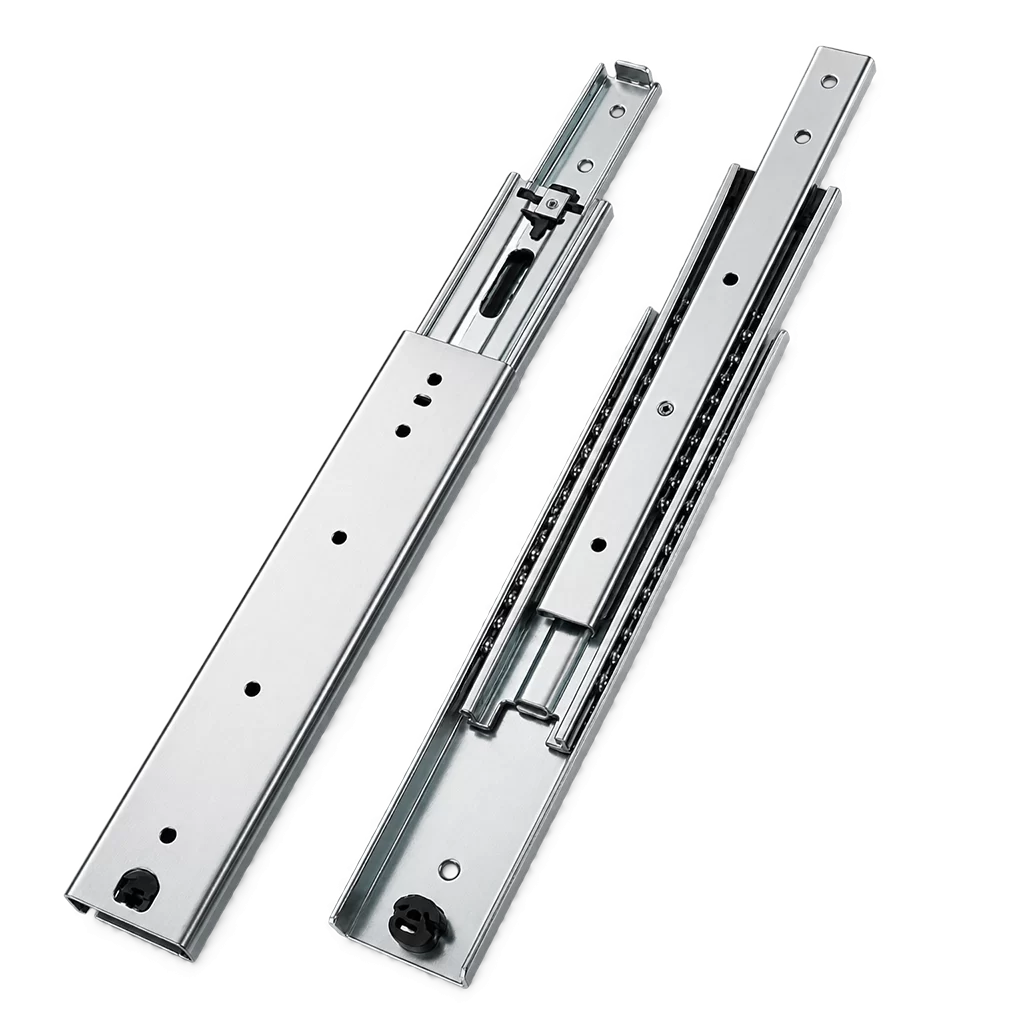

Product Features：Double-Row Solid Steel Balls/ Detachable Snap-Fit Mechanism

Specification
– Length: 250–1200 mm (10″–48″)
– Mounting Clearance: 18.5 mm (+0.5 mm / -0)
– Maximum Load: 125 kg
– Extension: Full Extension
– Mounting: Side Mounting
– Detachable: Yes
– Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
– Material: Cold-Rolled Steel
– Material Thickness: 2.0 × 2.0 × 2.0 mm

Drawer and cabinet rails can be mounted separately for easier installation and removal. The locking function prevents unintended drawer movement at full extension. Custom lengths,
mounting-hole positions, and extended travel are available.

Download Brochure

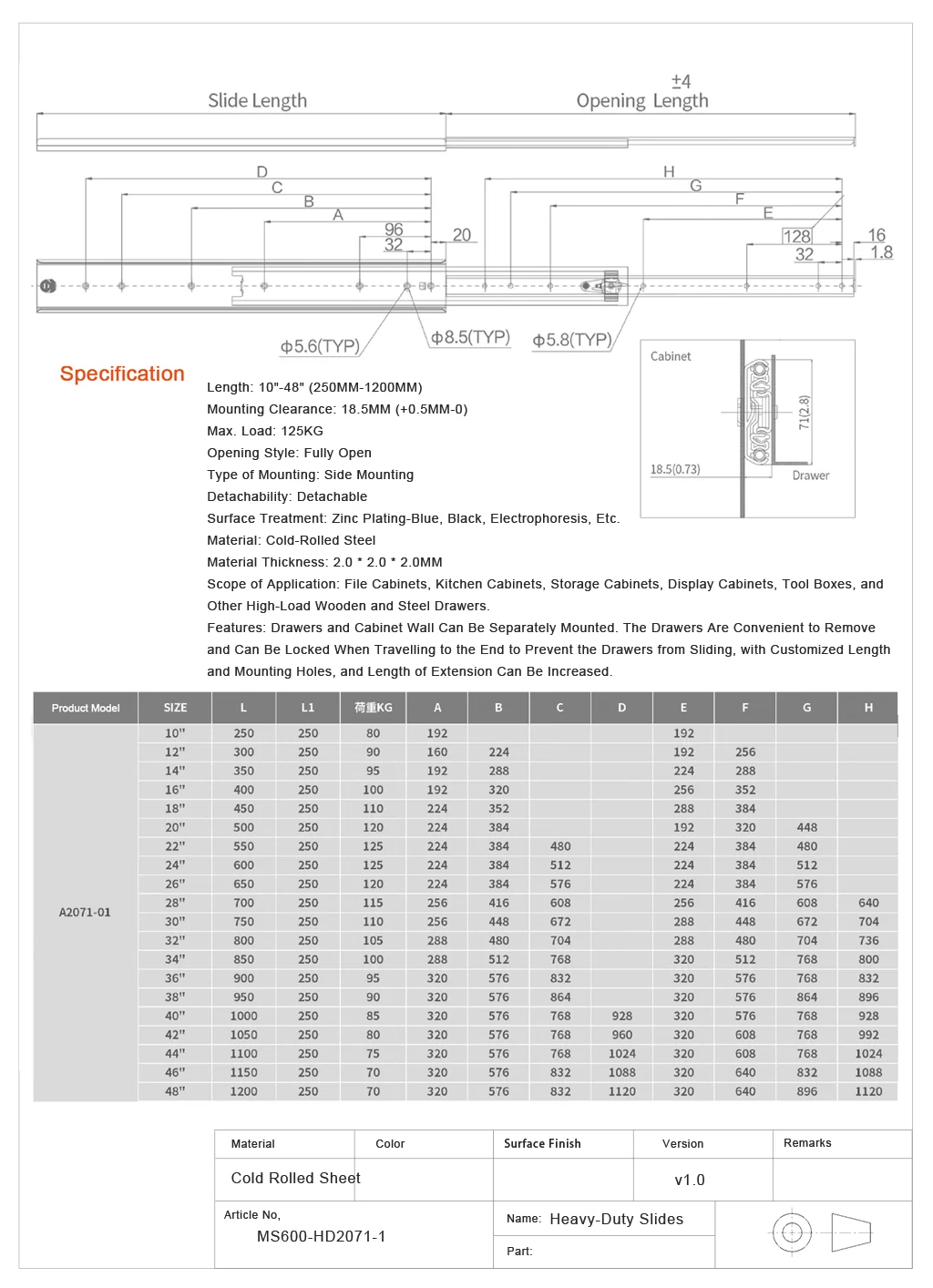

Product Description:

Product Features：Double-Row Solid Steel Balls/ Detachable Snap-Fit Mechanism

Specification
- Length: 250–1200 mm (10"–48")
- Mounting Clearance: 18.5 mm (+0.5 mm / -0)
- Maximum Load: 125 kg
- Extension: Full Extension
- Mounting: Side Mounting
- Detachable: Yes
- Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
- Material: Cold-Rolled Steel
- Material Thickness: 2.0 × 2.0 × 2.0 mm

Drawer and cabinet rails can be mounted separately for easier installation and removal. The locking function prevents unintended drawer movement at full extension. Custom lengths,
mounting-hole positions, and extended travel are available.

Application:

File cabinets, kitchen cabinets, storage cabinets, display cabinets, tool boxes, and other high-load wooden and steel drawers.
