Mineon

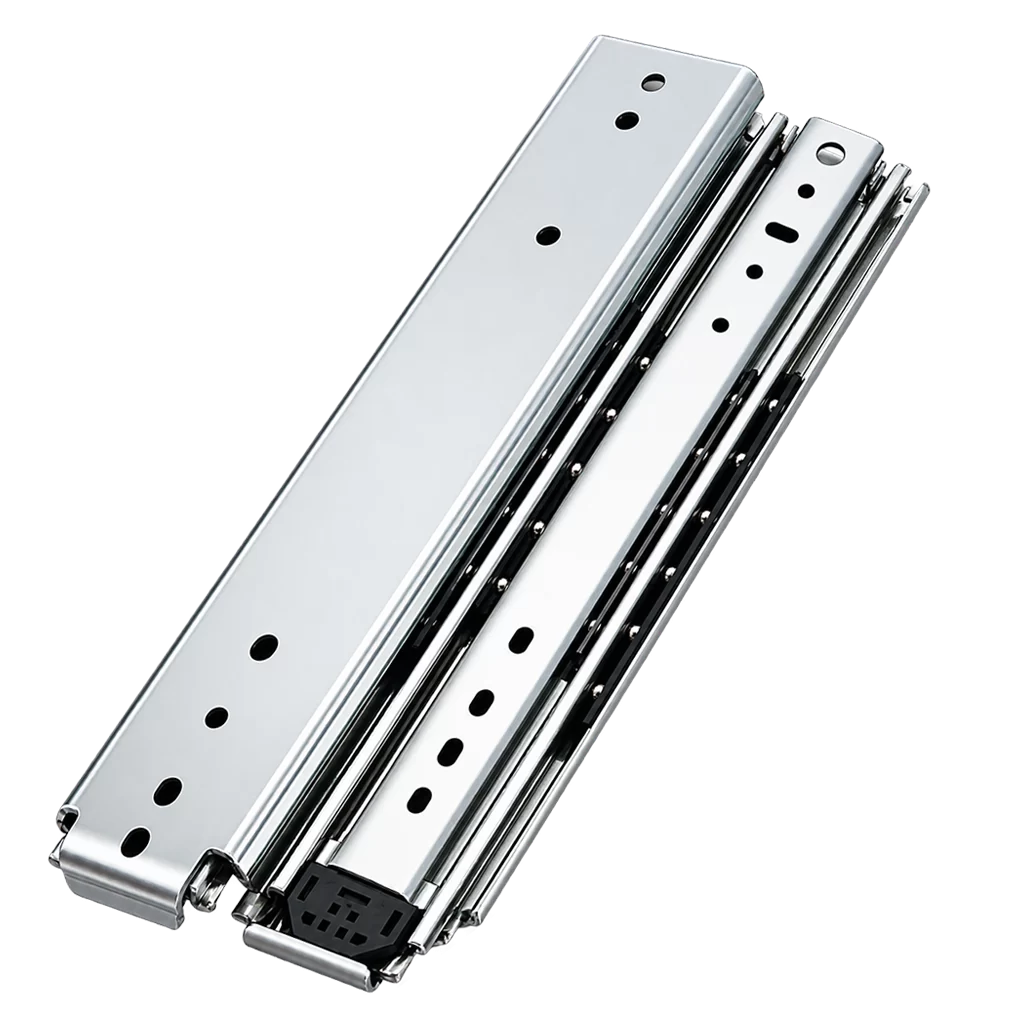

Heavy-Duty Slides_MS600-HD2576-A

Heavy-Duty Slides_MS600-HD2576-A

0,00 €

Product Features：Silent Anti-Collision Buffer ，Double-Row Heavy-Duty Steel Ball Bearings

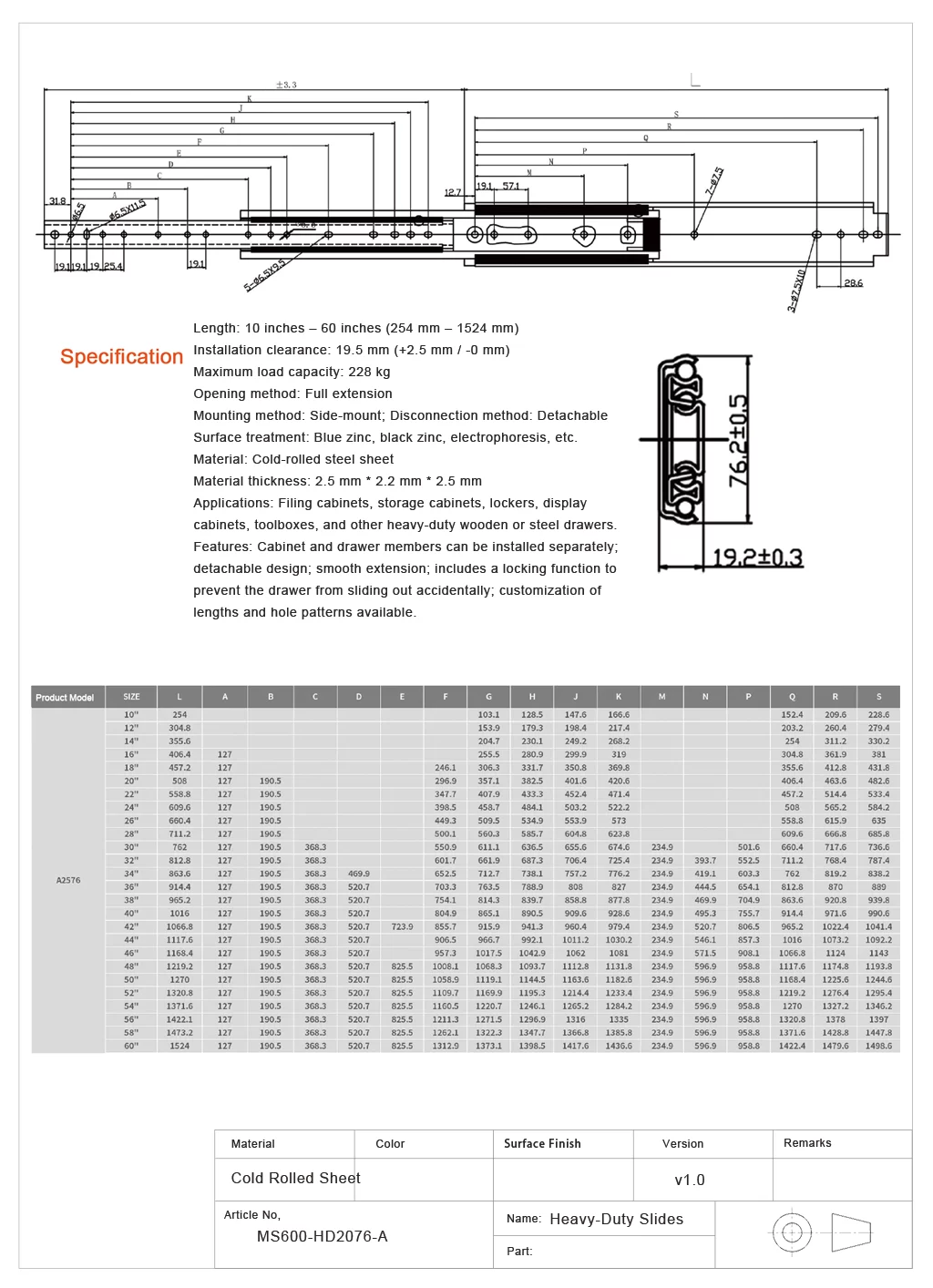

Specification
– Length: 254–1524 mm (10″–60″)
– Installation Clearance: 19.5 mm (+2.5 mm / -0)
– Maximum Load: 228 kg
– Extension: Full Extension
– Installation: Side Mounting / Detachable
– Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
– Material: Cold-Rolled Steel
– Material Thickness: 2.5 × 2.2 × 2.5 mm

Drawer and cabinet rails can be installed separately for easier installation and removal.The locking function prevents unintended drawer movement at full extension. Custom lengths and mounting-hole positions are available.

Download Brochure
Product Description:

Product Features：Silent Anti-Collision Buffer ，Double-Row Heavy-Duty Steel Ball Bearings

Specification
- Length: 254–1524 mm (10"–60")
- Installation Clearance: 19.5 mm (+2.5 mm / -0)
- Maximum Load: 228 kg
- Extension: Full Extension
- Installation: Side Mounting / Detachable
- Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
- Material: Cold-Rolled Steel
- Material Thickness: 2.5 × 2.2 × 2.5 mm

Drawer and cabinet rails can be installed separately for easier installation and removal.The locking function prevents unintended drawer movement at full extension. Custom lengths and mounting-hole positions are available.

Application:

File cabinets, kitchen cabinets, storage cabinets, display cabinets, tool boxes, and other high-load wooden and steel drawers.

Slide Rail- Mineon

PDF · 9.3 MB

View PDFDownload
