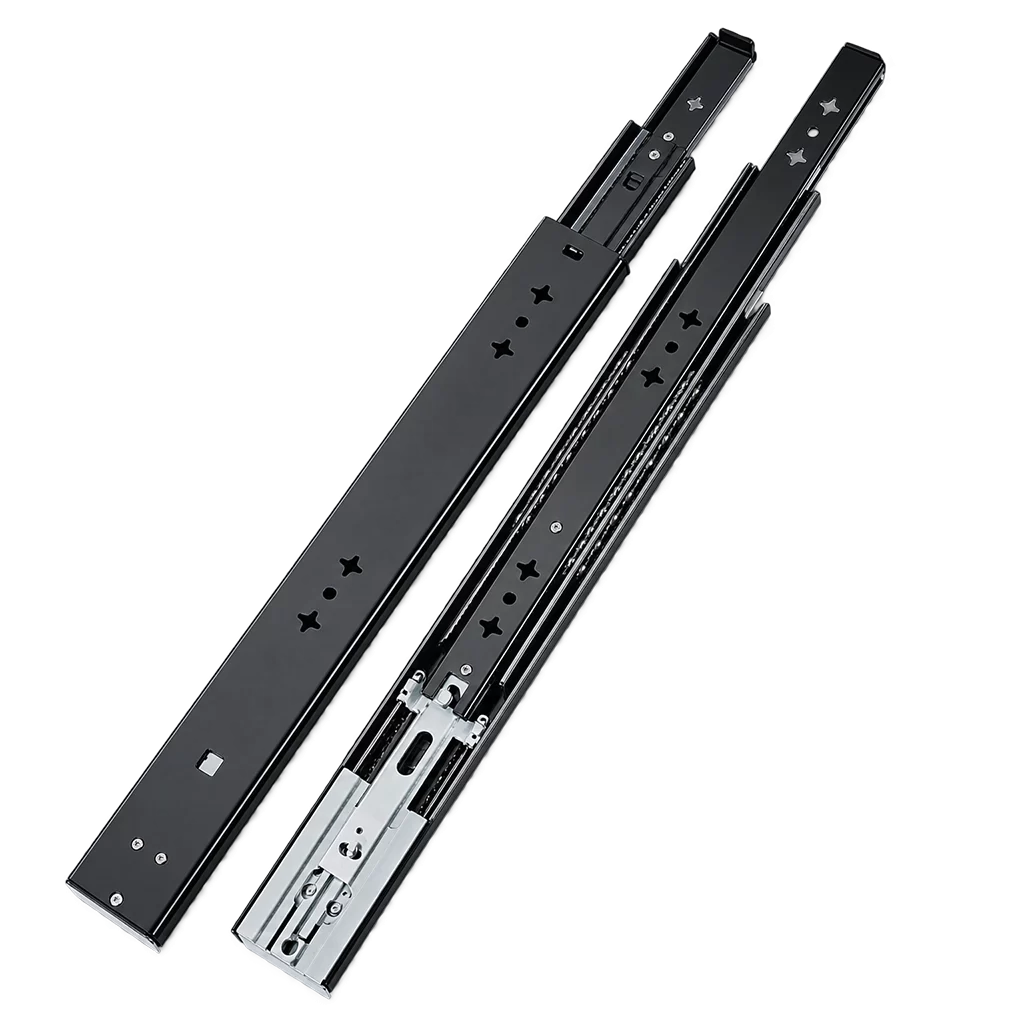

53mm Heavy-Duty Dual-Rod Hydraulic Soft-Close Drawer Slide MS600-HD5302

A: Mineon provides a comprehensive line of slide rails covering low, medium, and heavy loads, as well as specialized environments. Our product portfolio includes five major categories:

1. Light-Duty Slides: Such as 35mm profile width series, suitable for lightweight drawers, IT equipment enclosures, and display racks.
2. Medium-Duty Slides: Such as 45mm profile width series, supporting full extension, widely used in industrial cabinets, office furniture, and vehicle equipment.
3. Heavy-Duty Slides: Such as the MS600-HD series, specifically designed for high load-bearing capacity and shock resistance in industrial machinery, specialty vehicles, and heavy-duty enclosures.
4. Stainless Steel Slides: Feature high corrosion resistance, suitable for medical equipment, food processing, and humid or outdoor environments.

•5.Aluminum Slides: Combine lightweight design with corrosion resistance, suited for aerospace, rail transit, or automated machinery with strict weight limits.

A: The load capacity of a slide rail depends on rail thickness, structural design, and installed length. General selection guidelines are as follows:

• Light-Duty: Load capacity approx. 20 kg – 35 kg;
• Medium-Duty: Load capacity approx. 45 kg – 90 kg;
• Heavy-Duty: Load capacity from 100 kg up to 500+ kg (please refer to the specific model datasheet for exact parameters).

Note: Rated load capacities are generally based on static load for a pair (2 pieces) of slides fully extended. For dynamic or shock loading conditions, a safety margin of 20%–30% should be reserved.

A:

• Partial Extension (Two-Fold): The drawer extension distance is approximately 75% of the closed length of the slide.
• Full Extension (Three-Fold): The slide extends completely so that the extension length equals the closed length (100%), allowing full access to the interior contents. Mineon 45mm and heavy-duty series mostly utilize this structure.

••Over Travel: The extension length exceeds the closed length of the slide (e.g., >100%), making it easy to remove or access drawers positioned beneath overhangs or recessed panels.

A: Depending on specific model requirements, Mineon slide rails offer various functional configurations:

• Soft-Close (Damped / Quiet Self-Closing): Such as the MS600-MD4502 soft-close slide, featuring built-in hydraulic dampers to prevent slamming and noise, protecting sensitive equipment.
• Push-to-Open (Handleless Release): Such as the MS600-MD4505 slide, opens automatically with a light touch on the panel, suitable for handleless drawer and enclosure designs.

••Lock-in / Lock-out (Bi-directional Locking): Heavy-duty slides can be configured with locking mechanisms to prevent accidental sliding out or closing during transit or on inclined surfaces (commonly used in specialty vehicles and drawer-style rack units).

A: Mineon ball bearing slides utilize precision steel balls paired with hardened raceways, offering the following benefits:

1. High Smoothness: Rolling friction is significantly lower than sliding friction, allowing smooth movement even under heavy loads.
2. Lateral Stability: Multi-row ball bearing arrangements withstand significant lateral shear forces.

•3.Long Service Life: High-hardness steel balls combined with wear-resistant grease extend cycle longevity.

A:

• Cold-Rolled Steel (CRS): The most common standard material, treated with Zinc-plating or Electrophoretic Black finish. Cost-effective and suited for general indoor industrial environments.
• Stainless Steel (SUS304 / SUS316): Offers superior rust and corrosion resistance, suitable for food processing, pharmaceuticals, chemical equipment, and marine applications.

••Aluminum Alloy: Lightweight and corrosion-resistant, ideal for mobile, aerospace, and high-frequency equipment requiring weight reduction.

A: Stainless Steel Slides are strongly recommended. If budget constraints require cold-rolled steel, ensure the slides have high salt-spray test ratings (zinc plating or protective coatings) and apply anti-rust grease during regular maintenance.

A:

1. Parallelism & Side Clearance: Ensure the mounting clearance on both sides matches specifications (medium-duty slides typically require $12.7text{mm} pm 0.2text{mm}$ side space per side). Tight clearance causes binding, while excessive clearance leads to uneven load distribution.
2. Vertical Alignment: Ensure mounting screws are installed flush and perpendicular to avoid screw heads catching or scratching the inner ball retainer.

•3.Structural Support: Ensure the mounting surface has sufficient structural rigidity to withstand the cantilever leverage torque when the slide is fully extended under load.

A: Yes. Mineon possesses complete engineering design and manufacturing capabilities:

• Customization Services: Non-standard lengths, custom hole patterns, special extension travels, customized load capacities, and special surface treatments.

••Sample Services: Sample units are available for testing and evaluation (requests can be submitted via the website's Request a Quote or by emailing Jane.zou@mineon.de).

To request technical datasheets, 3D CAD models, or volume pricing, please contact the Mineon team:

• Website: mineon.de
• Email: info@mineon.de / Jane.zou@mineon.de

••Address: Stormstraße 3, 41469 Neuss, Germany
