Mineon

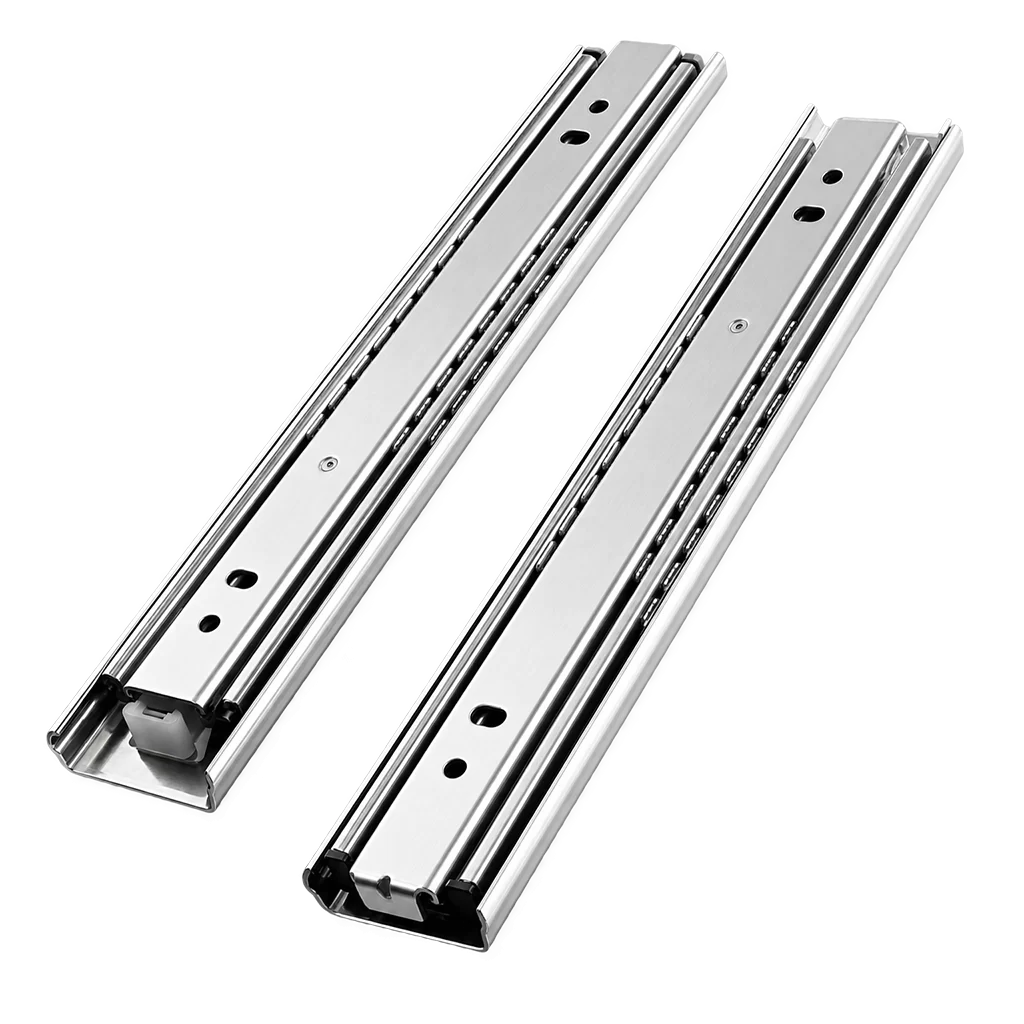

Heavy-Duty Slides_MS600-HD2055-A

Heavy-Duty Slides_MS600-HD2055-A

0,00 €

Features: Drawer and cabinet rails can be installed separately for easier installation and removal. The locking function prevents unintended drawer movement. Custom lengths and mounting-hole positions are available.

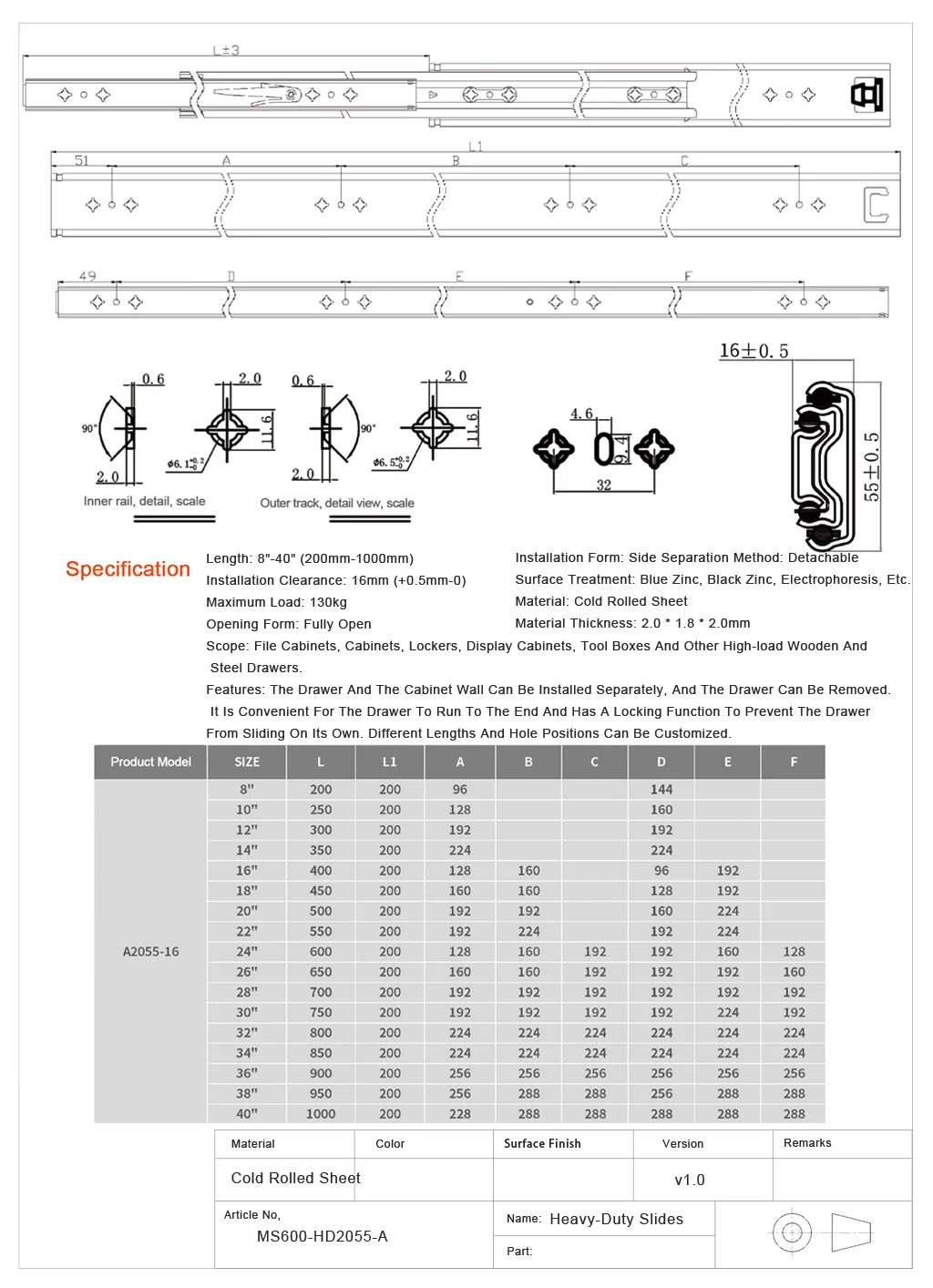

Specification
– Length: 200–1000 mm (8″–40″)
– Installation Clearance: 16 mm (+0.5 mm / -0)
– Maximum Load: 130 kg
– Extension: Full Extension
– Installation: Side Mounting / Detachable
– Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
– Material: Cold-Rolled Steel
– Material Thickness: 2.0 × 1.8 × 2.0 mm

Download Brochure
Product Description:

Features: Drawer and cabinet rails can be installed separately for easier installation and removal. The locking function prevents unintended drawer movement. Custom lengths and mounting-hole positions are available.

Specification
- Length: 200–1000 mm (8"–40")
- Installation Clearance: 16 mm (+0.5 mm / -0)
- Maximum Load: 130 kg
- Extension: Full Extension
- Installation: Side Mounting / Detachable
- Surface Treatment: Blue Zinc / Black Zinc / Electrophoresis
- Material: Cold-Rolled Steel
- Material Thickness: 2.0 × 1.8 × 2.0 mm

Application:

File cabinets, cabinets, lockers, display cabinets, tool boxes, and other high-load wooden and steel drawers.

Slide Rail- Mineon

PDF · 9.3 MB

View PDFDownload
