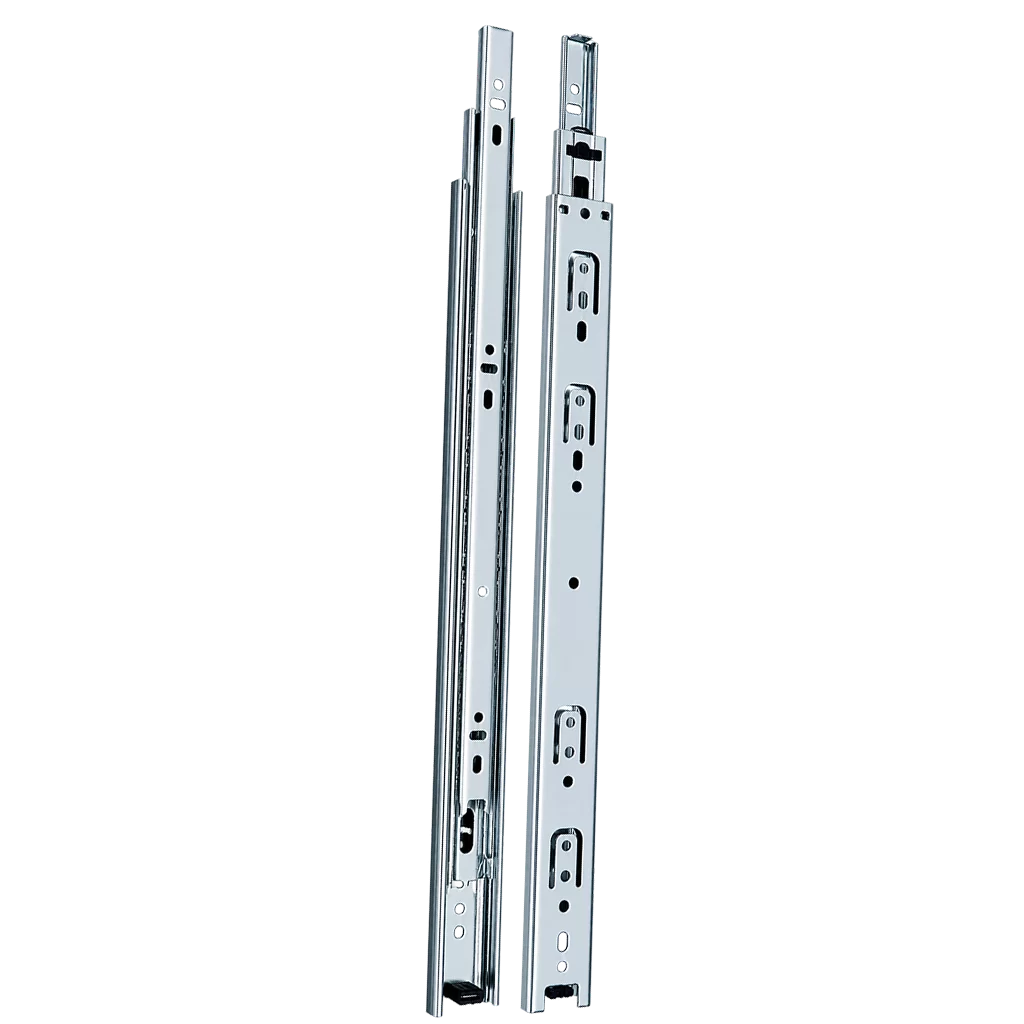

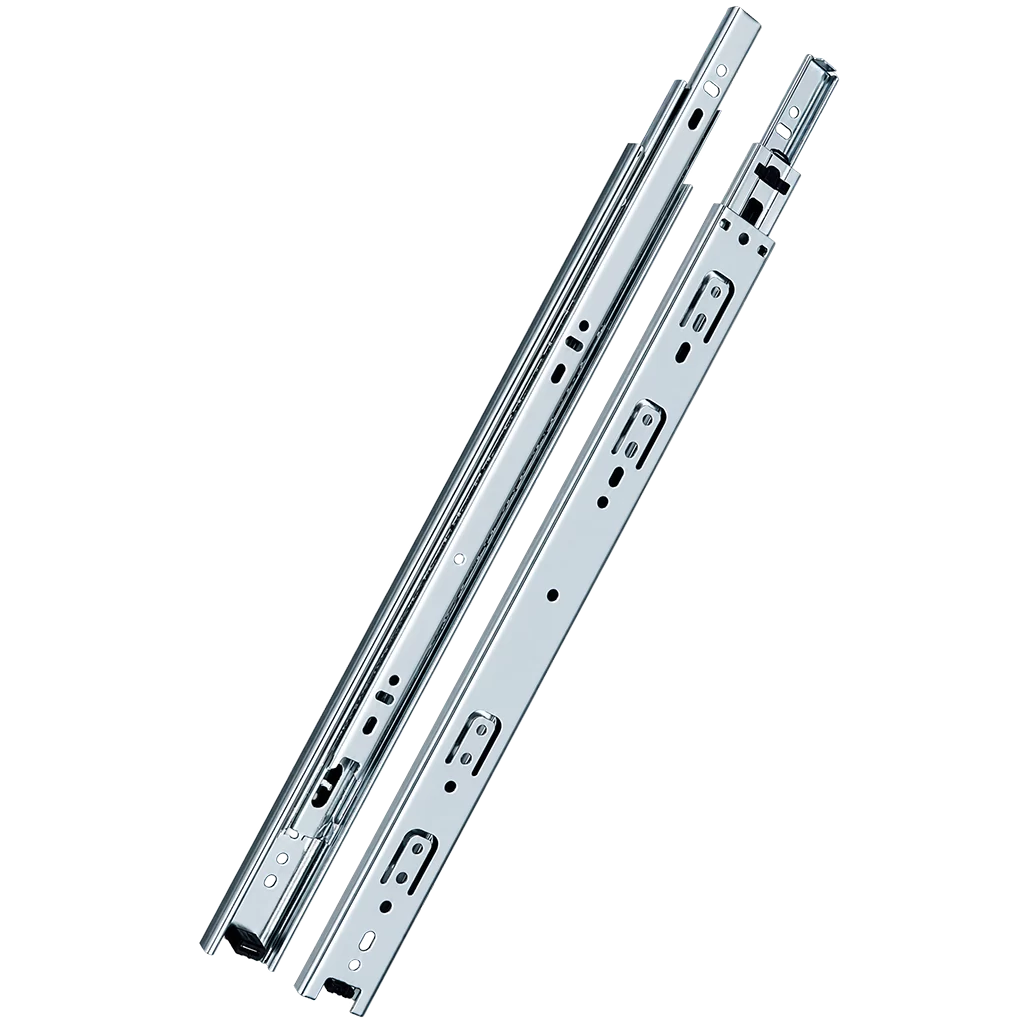

35mm Light-Duty Slide Rail-MS600-LD3501
Price range: 2,71 € through 4,92 €
Compact 35 mm Profile | Full Extension Design | Smooth Ball-Bearing Movement | 250–600 mm Length Options
Suitable for light-duty drawers, storage compartments, office furniture, RV interiors, control cabinets and small equipment trays.
Light-Duty Slides
Light-duty slide rails for compact and fumiture applications

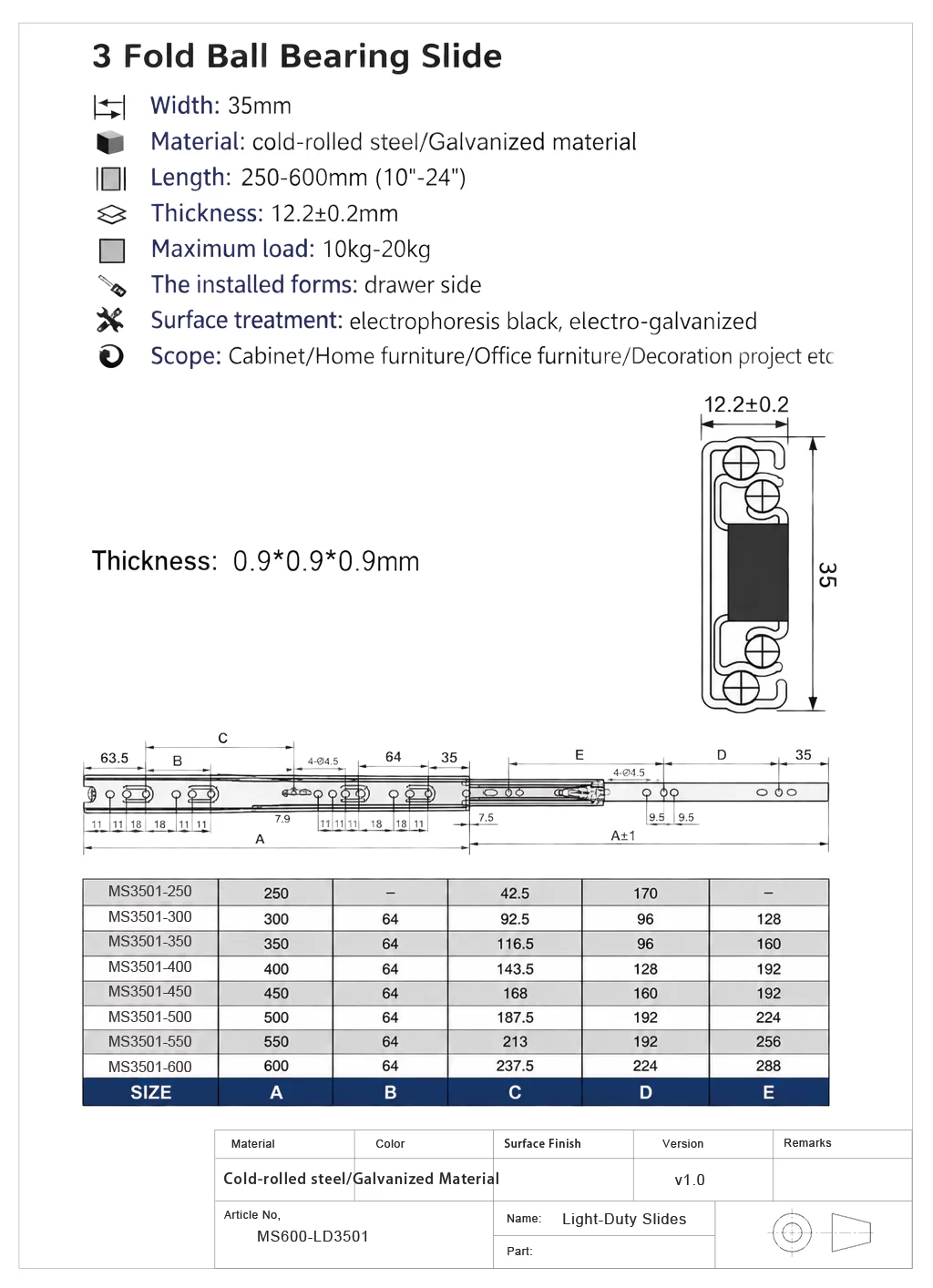

Specification：3 Fold Ball Bearing Slide
- Width: 35 mm
- Material: Cold-rolled steel / Galvanized material
- Length: 250–600 mm (10"–24")
- Thickness: 12.2 ± 0.2 mm
- Maximum Load: 10–20 kg
- Installation: Drawer side
- Surface Treatment: Electrophoresis black / Electro-galvanized
- Application: Cabinet / Home furniture / Office furniture / Decoration projects, etc.
No downloads are currently available for this product.
