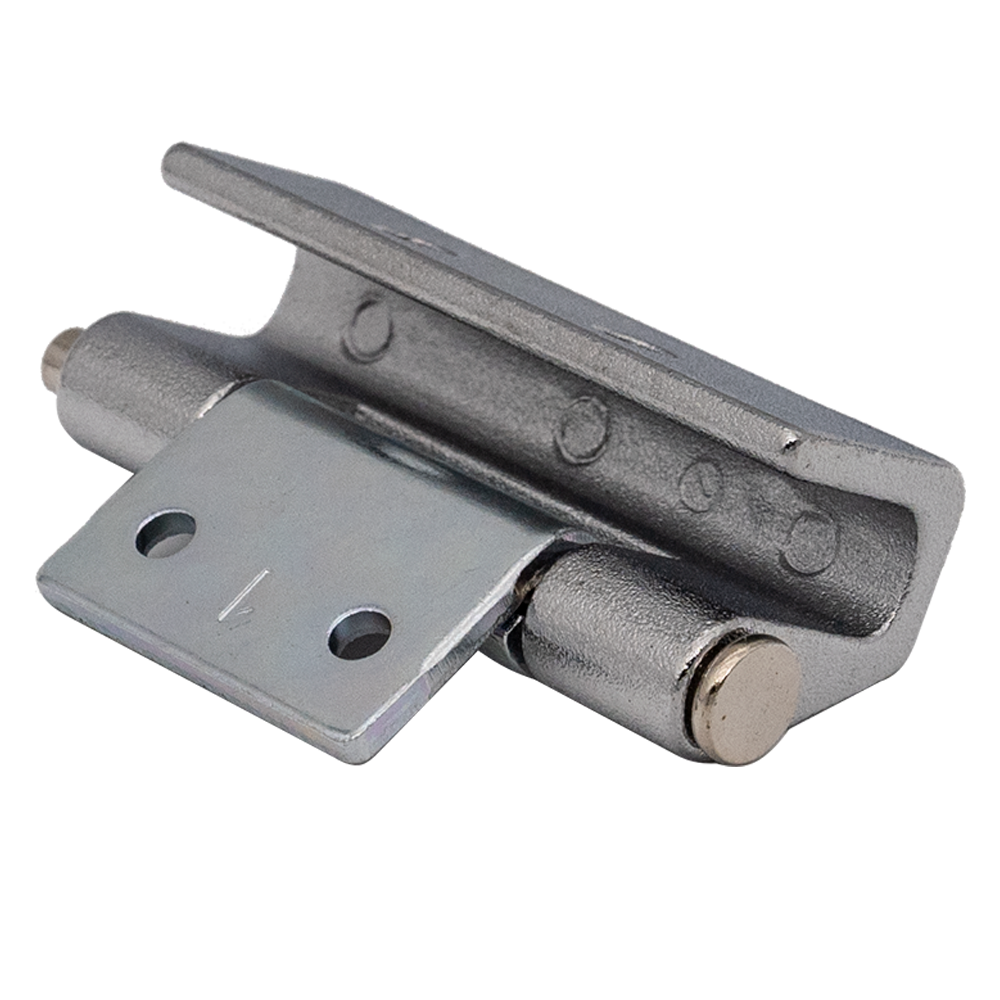

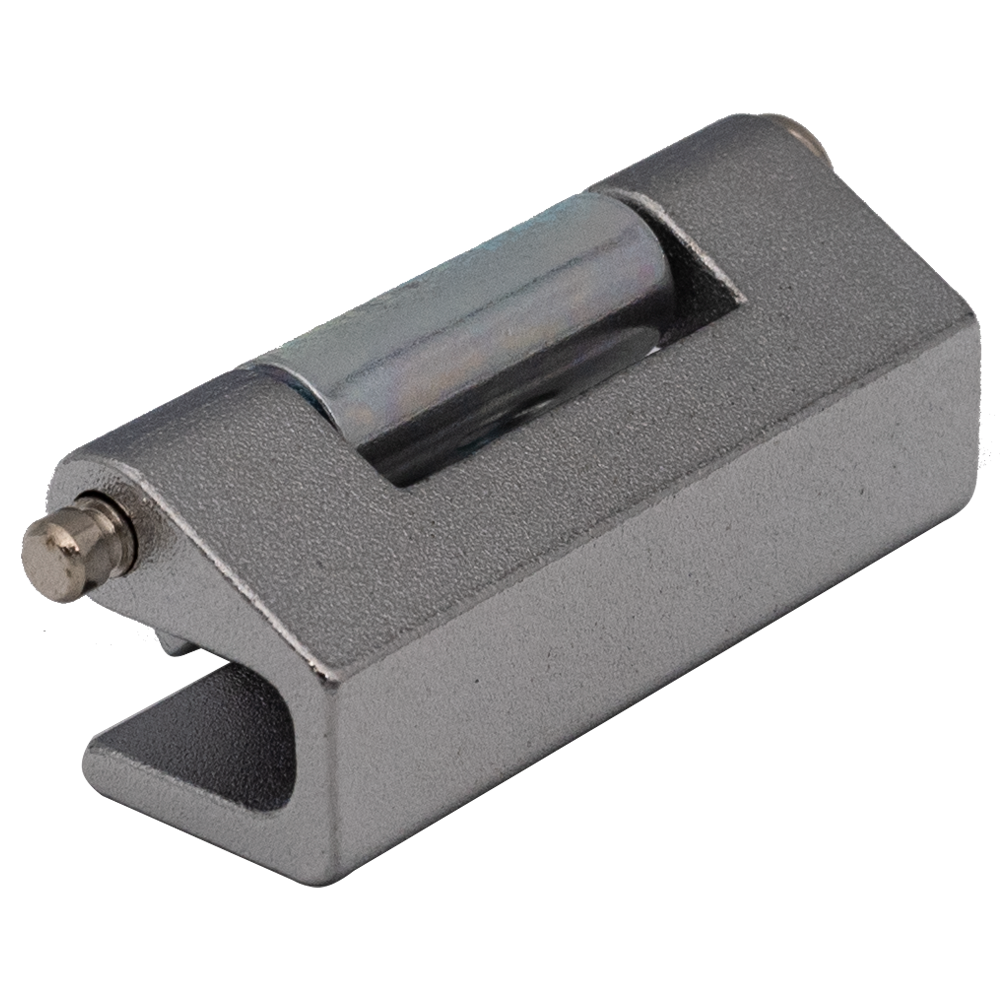

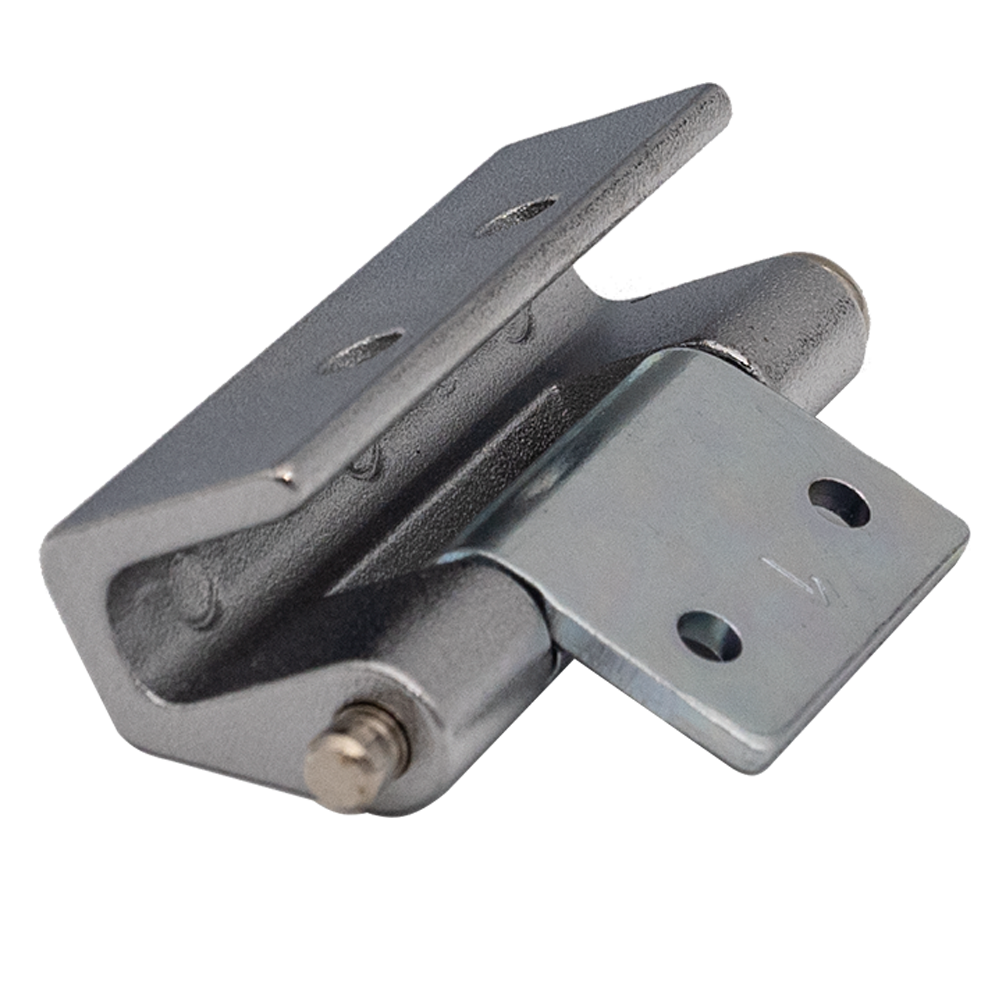

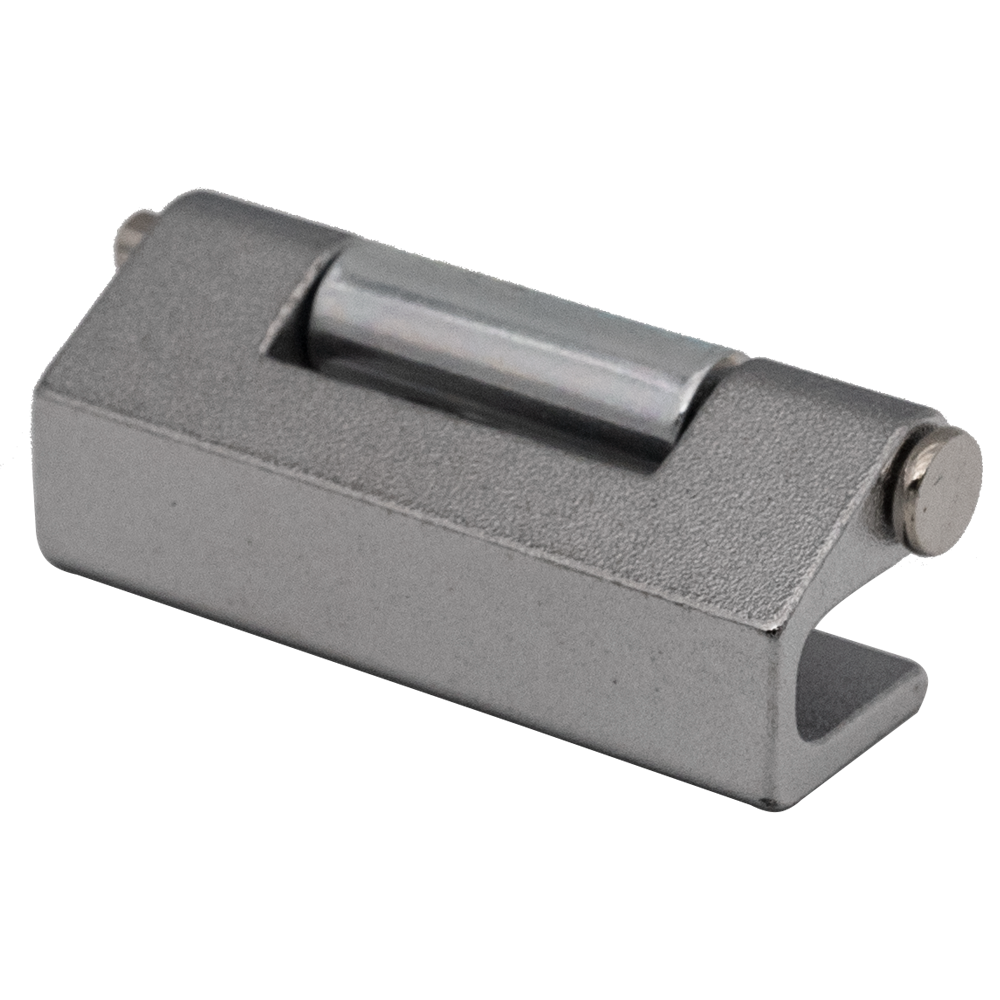

    Concealed Hinge MH200-1004

    Concealed Hinge,Distribution Cabinet Hinge,Opening angle 90°

    Download
    Model Selection
    clear

    Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 2.72
    excl.VAT

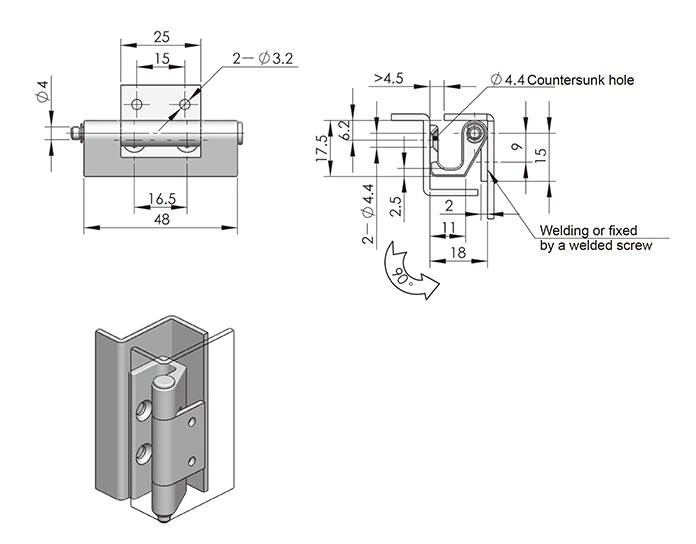

  • Drawing / Specifications
  • More Infrmation


    • Specification

    Main material and finish: Sand-spraying and nickel-plated Zinc Alloy female hinge, white zinc-plated steel male hinge,nickel plated steel pin

    Application: Opening angle 90°

    Performance parameter

    Maximum static load

    Radial load: 1295N

    Axial load: 290N
