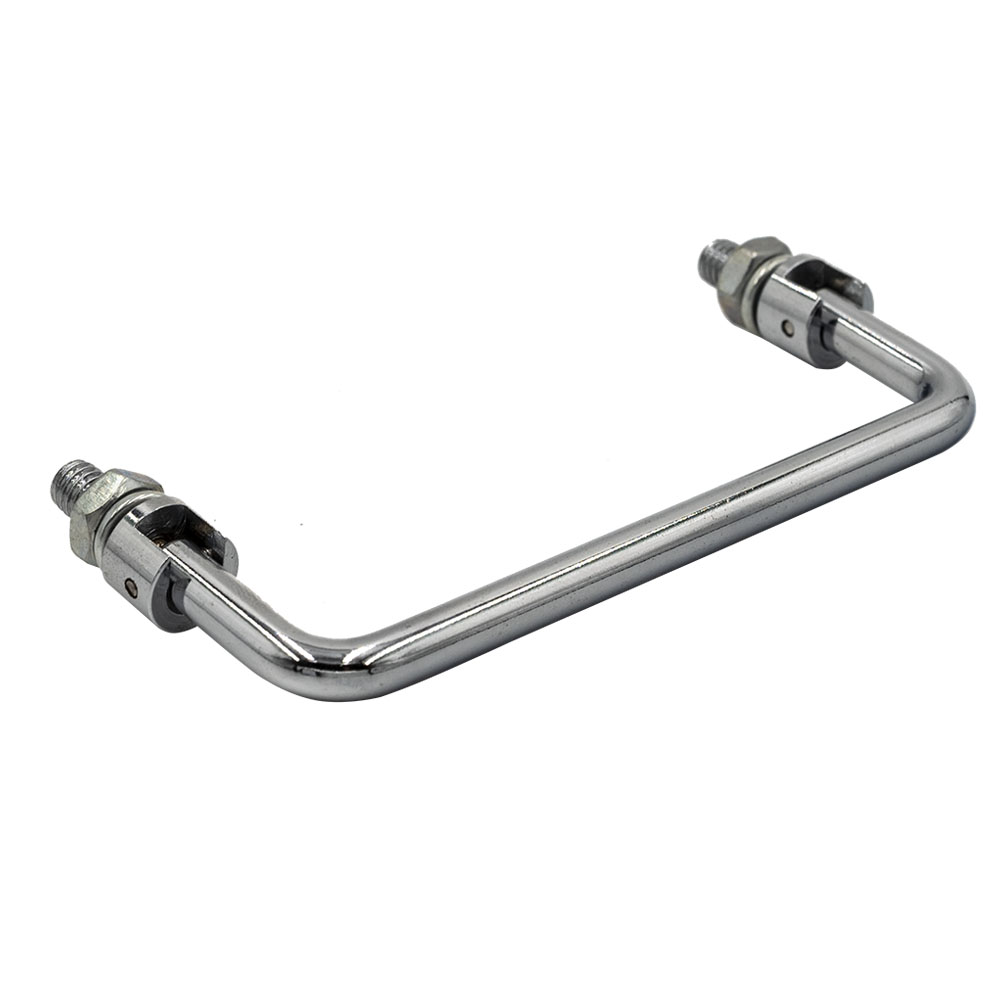

Folding Handle MH300-1001

Steel or Stainless Steel versions available,different Lengths available,with L=90mm steel handle,can bear a maximum static load 1200N.Easy Installation,ROHS compliance.
Model Selection
Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending(downward) height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending(upward) height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.
Material and Surface
  • SUS304
  • bright chrome plated steel
  • Center Length
  • L=100
  • L=119
  • Unexpected quotation for large order

    Do you need a quote?
    For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

    Model:

    EUR 3.65
    excl.VAT

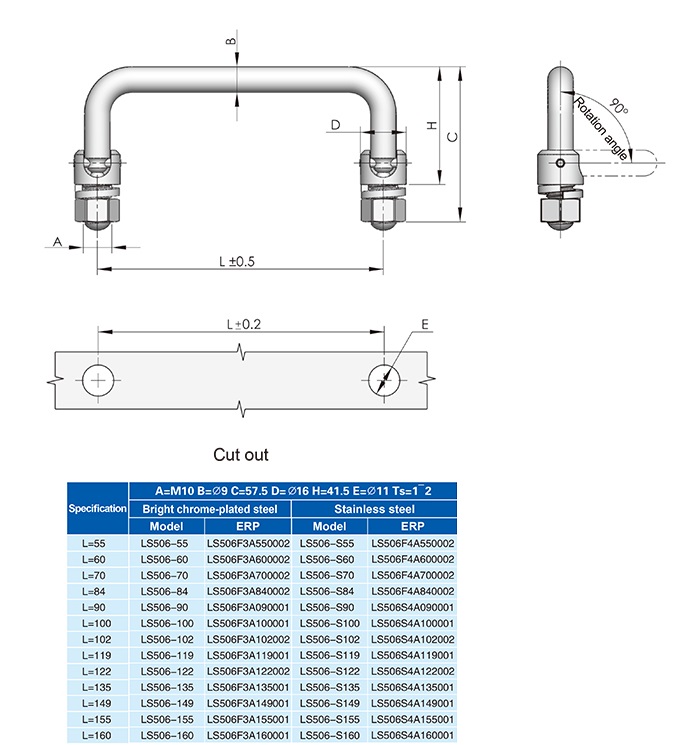

  • Drawing / Specifications
  • More Infrmation

  • Performance parameter

    Maximum static load: 1200N(L=90)
