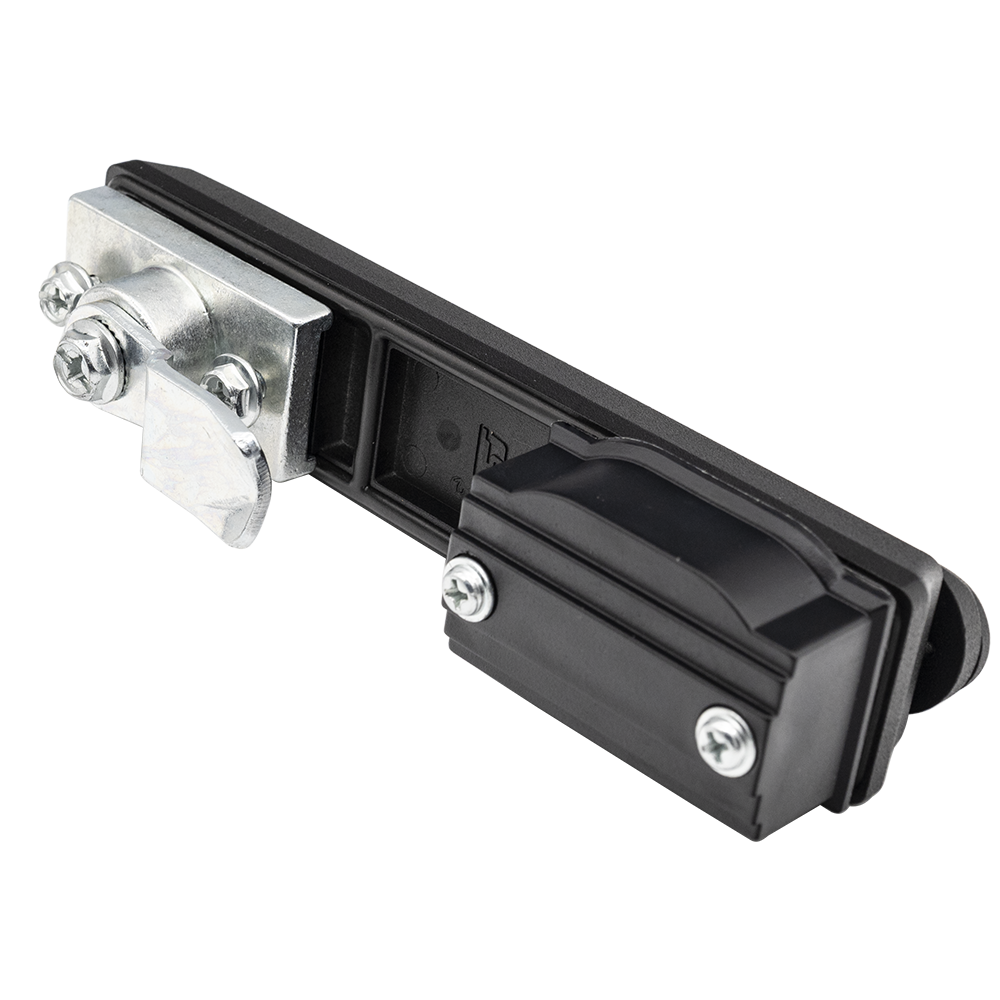

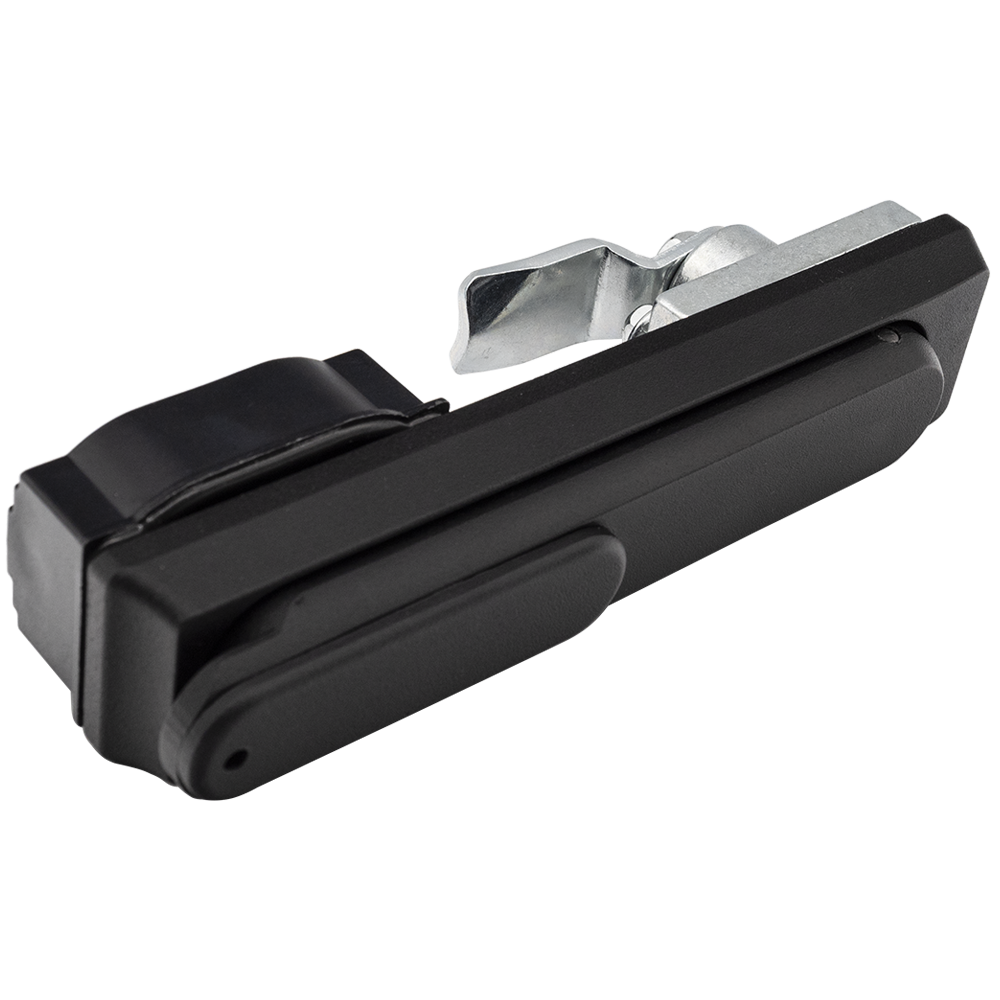

Swinghandle ML100-5003

Black Powder Coated Zinc Alloy or PA6 Housing and Handle,90 degree handle rotation combines with rod latch to open or close,Easy Installation,ROHS compliance

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).
The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material and Finish

Black powder coated zinc alloy

PA6+30%GF

Cylinder Option

profile cylinder

simple lock cylinder

Multi-Point Option

Rod control(2P/3P)

Cam control(1P)

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

Model:

EUR 28.92

excl.VAT

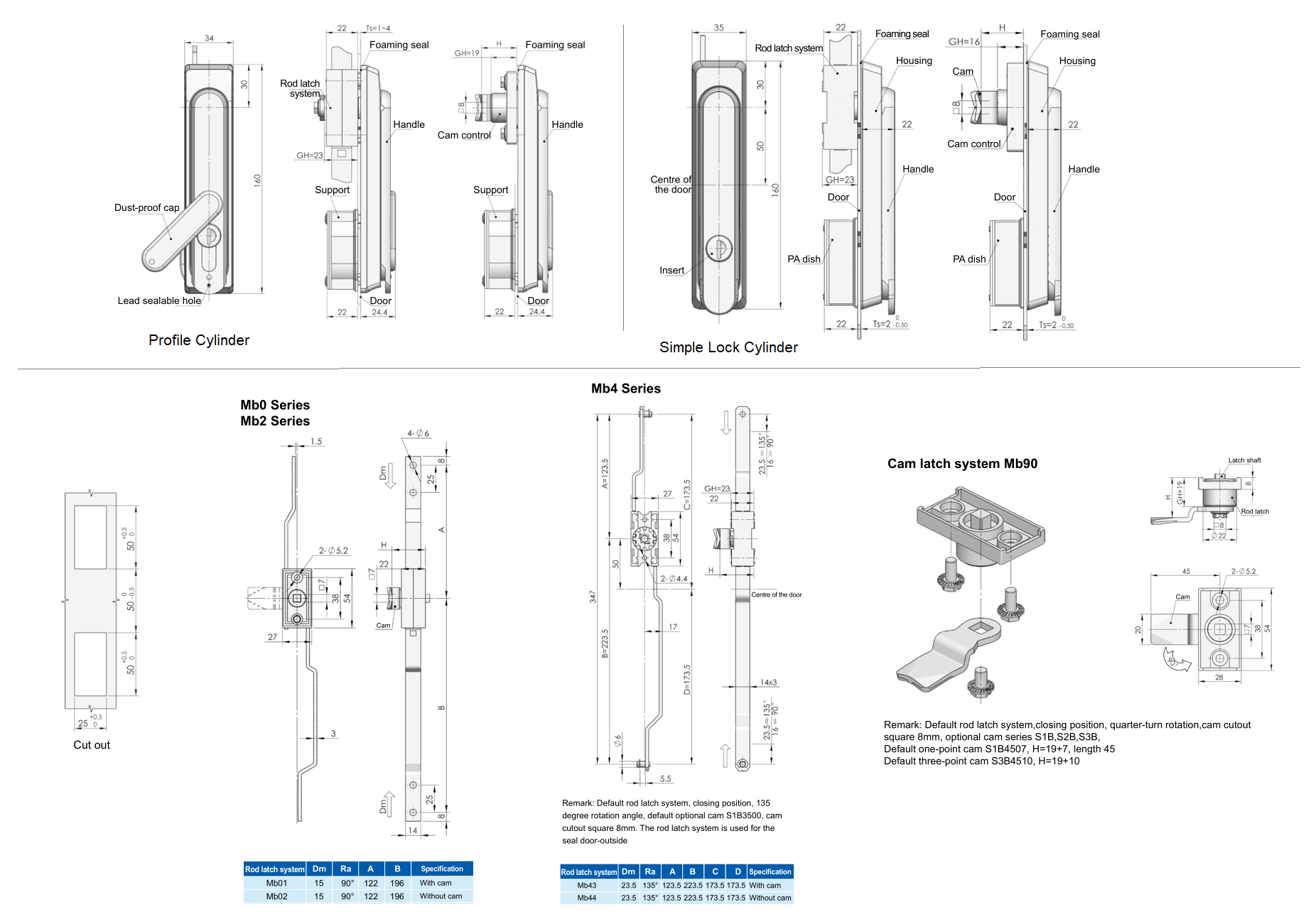

Drawing / Specifications

More Infrmation

Specification

Main material and finish: Black powder coated ZDC housing and handle, or PA6+30%GF Housing and handle,ZDC profile insert and rod control latch, white zinc-plated steel cam.

Application: 90 degree handle rotation combines with rod latch to open or close

Remarks: Default key 1333

Performance parameter

Zinc Alloy Version

Handle load tension capability:≤400N

Handle load torque capability: ≤35N.m

Maximum static load: 270N(cam type)

PA6 Version

Handle load tension capability:≤300N

Handle load torque capability: ≤33N.m
