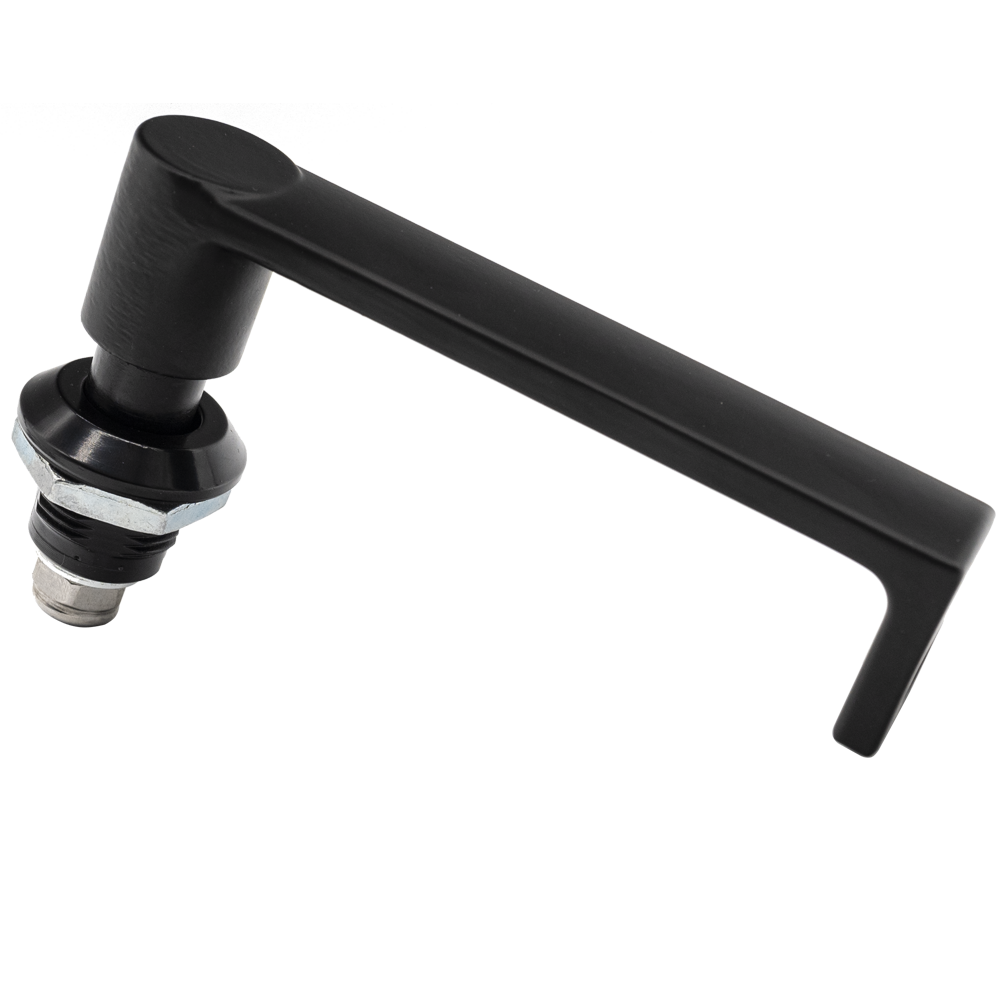

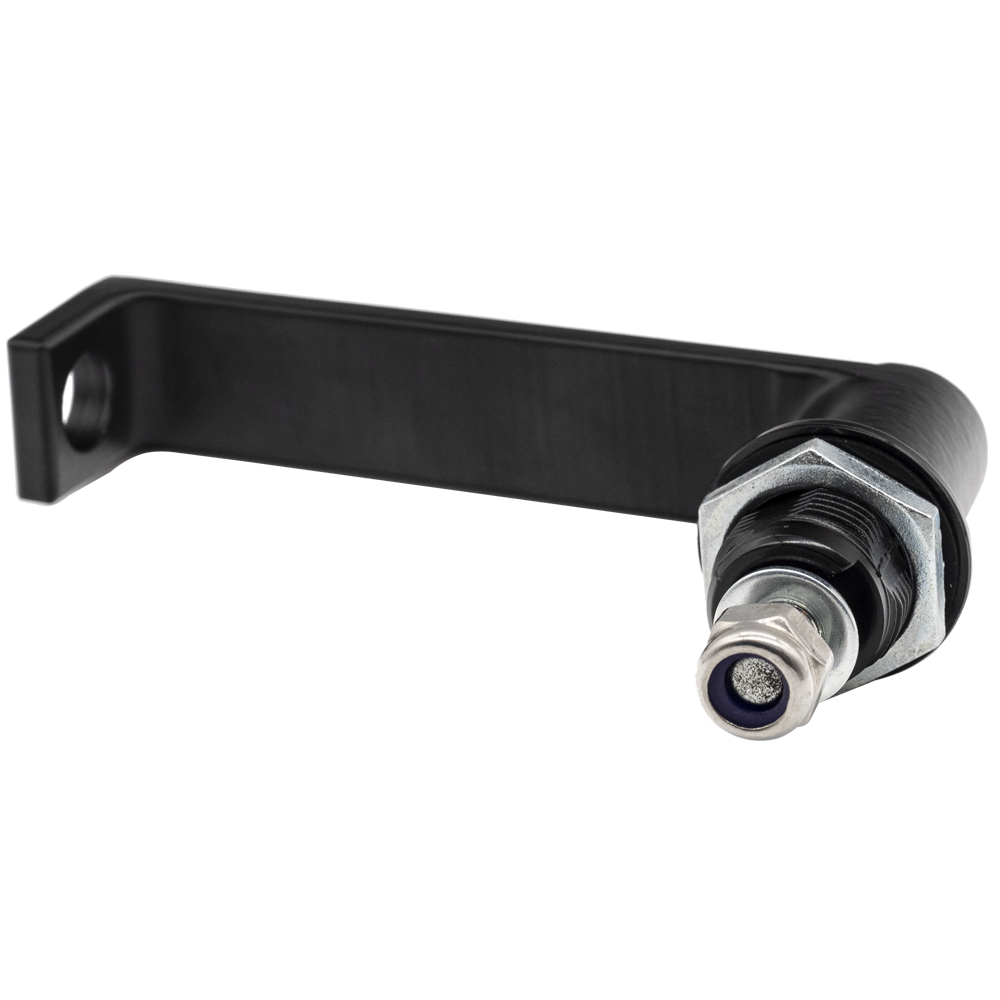

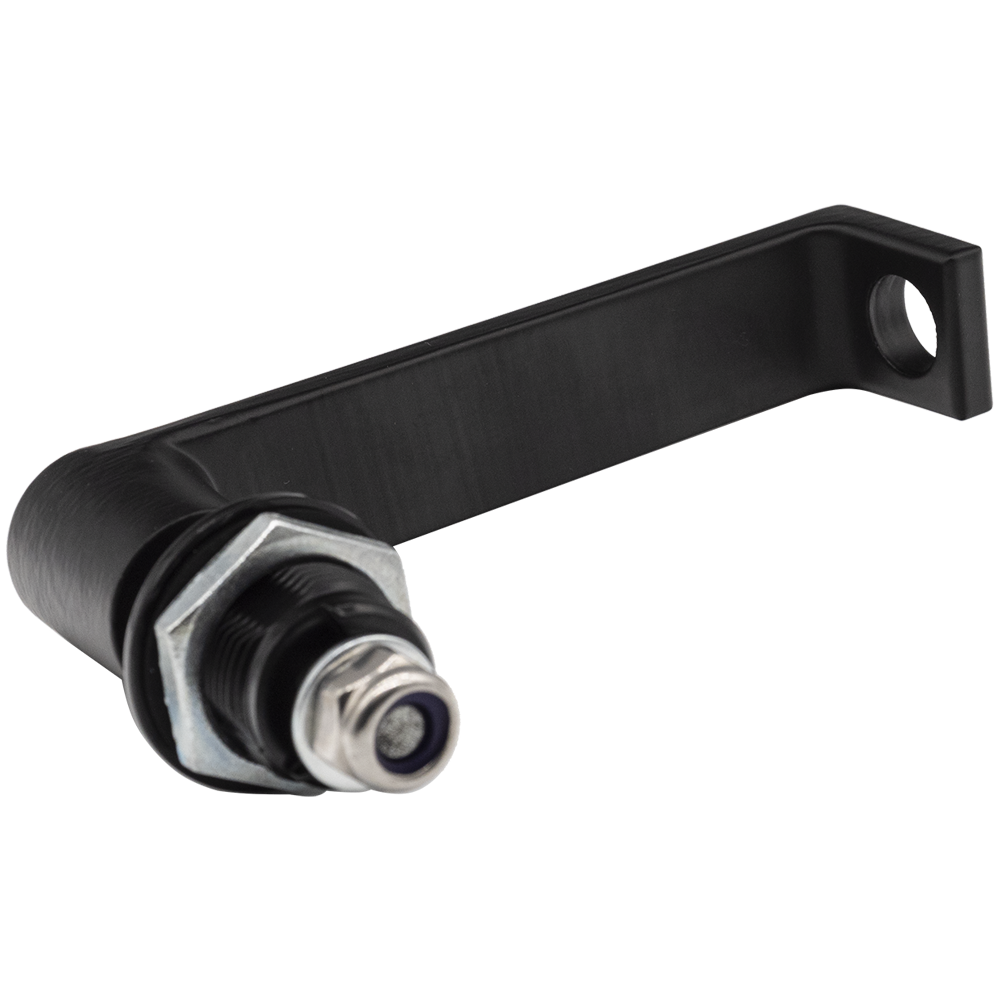

Quarter Turn L-Handle ML100-4007

Bloack Powder Coated Aluminum Alloy Handle, Lock Plate, Housing, Steel Cam,Easy Installation,ROHS compliance

Download

Model Selection

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.

Model:

EUR 8.99

excl.VAT

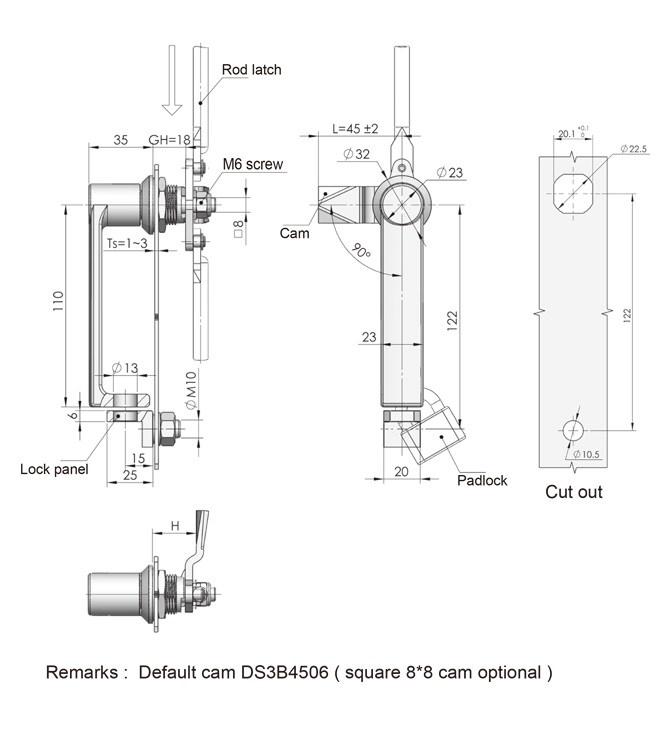

Drawing / Specifications

More Infrmation

Specification

Material and Finish：Black powder coated Aluminum Alloy handle, lock panel, Zinc Alloy housing, white zinc plated Cam

Structure description: Turn the handle 90 ° to open or close, with padlock

Performance parameter

Maximum static load: 270N

Maximum input torque: 20N.m
