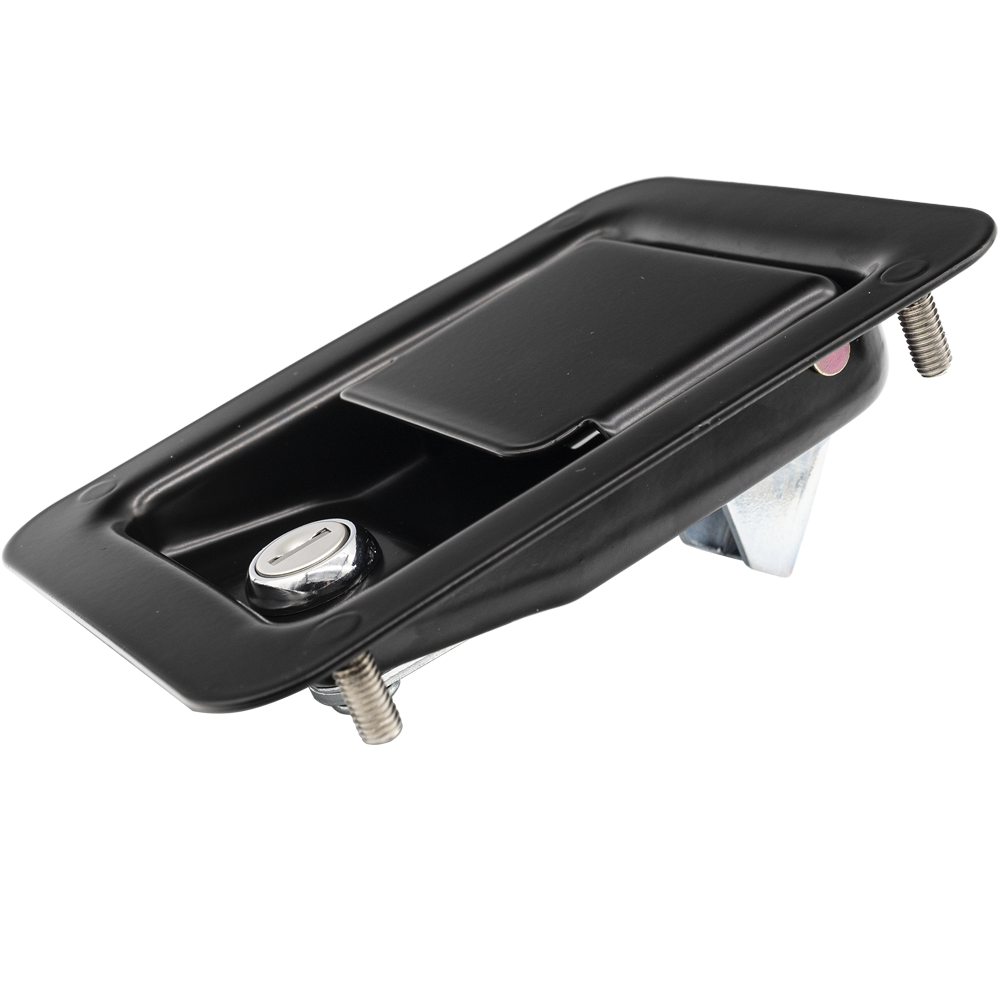

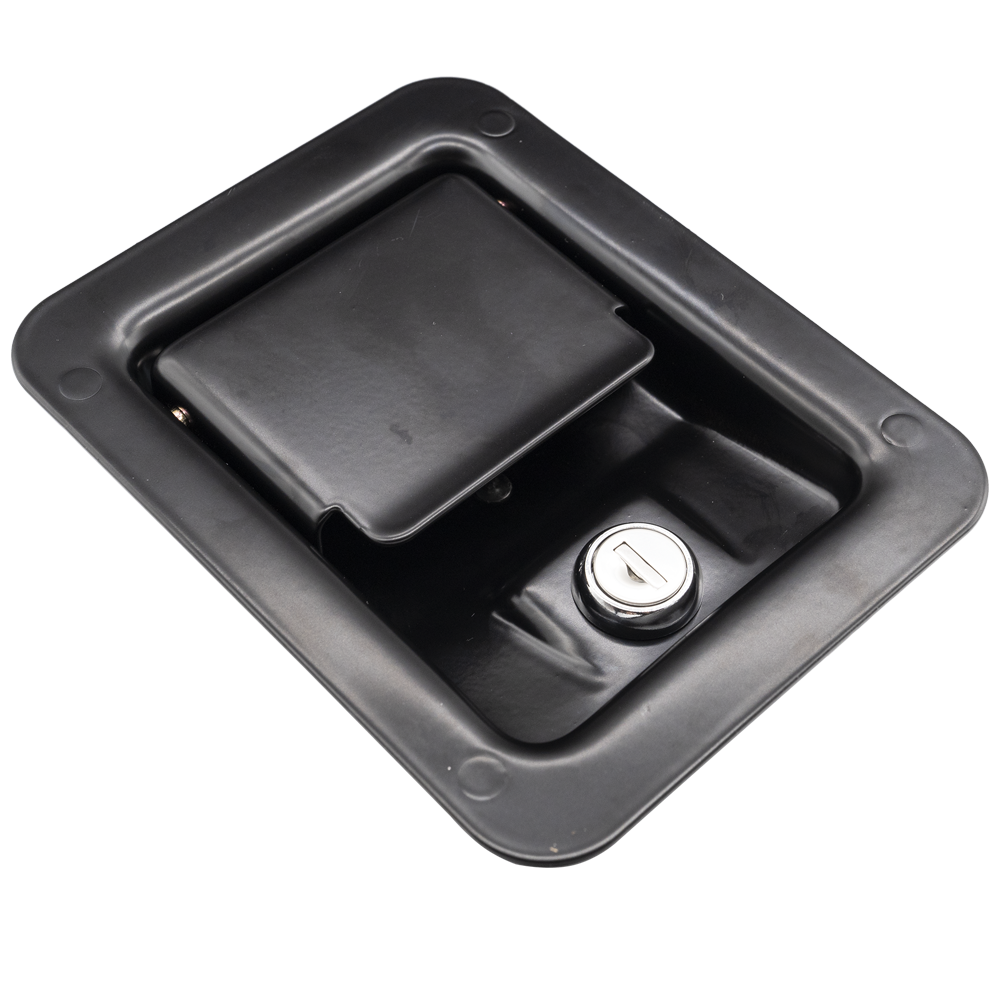

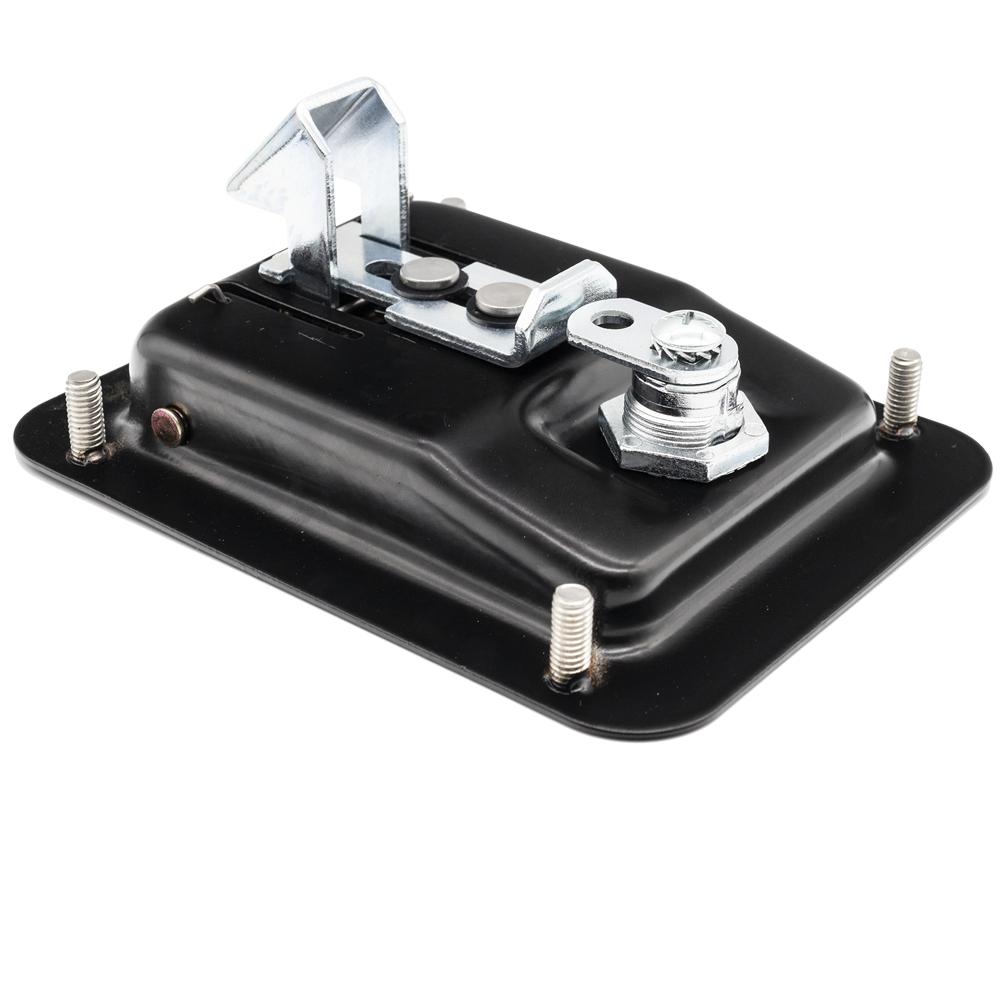

Paddle Latch ML100-3008

Flap Lock,Panel Lock,Paddle Lock for Trailer .Steel or Stainless Steel versions available,with key locking or non-locking,Size:140x108mm，H=31.5mm，Door Cutout:115*84mm,Easy Installation,ROHS compliance

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

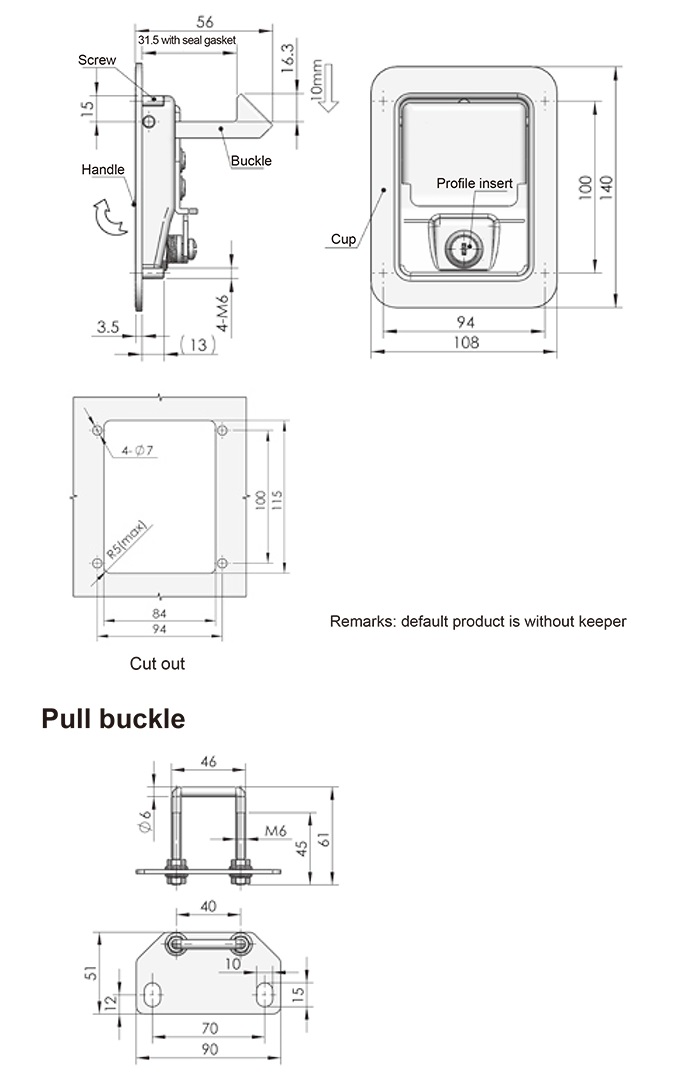

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Material and Surface

SUS304

black steel

Lock Type

with lock

without lock

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.
