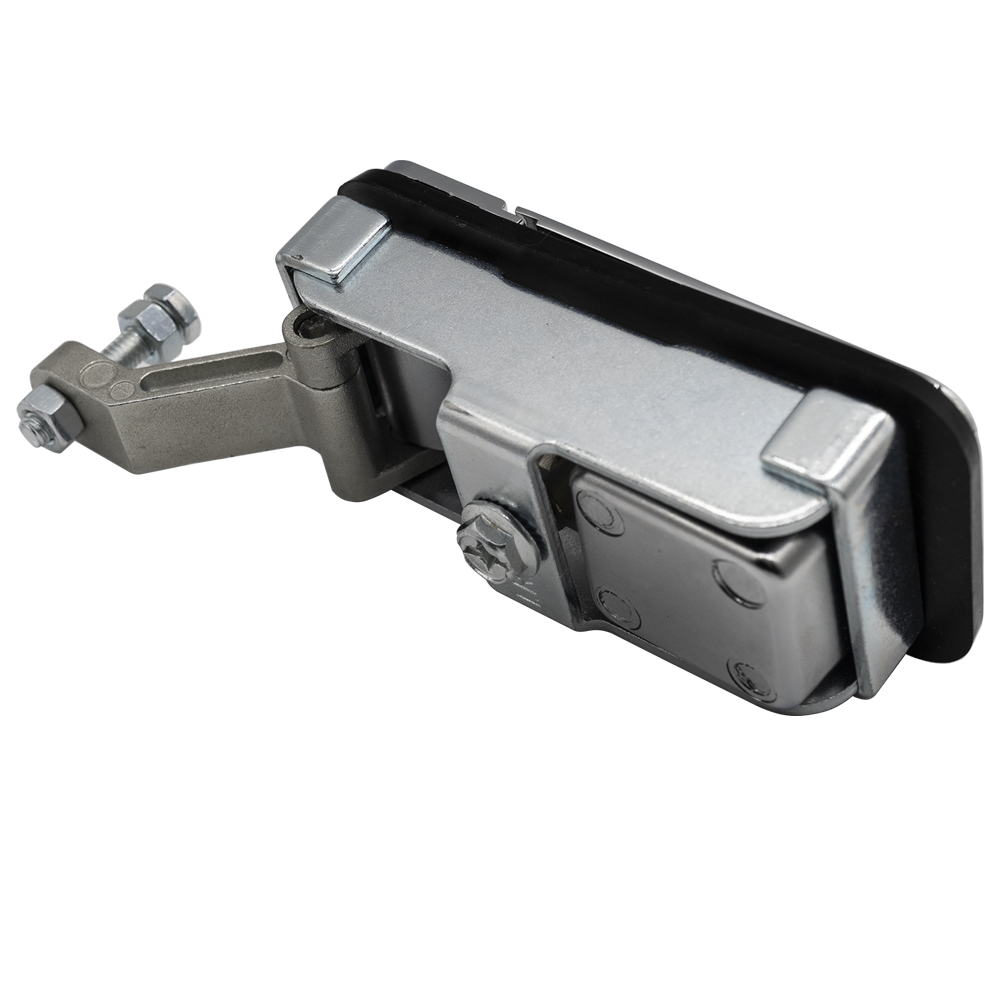

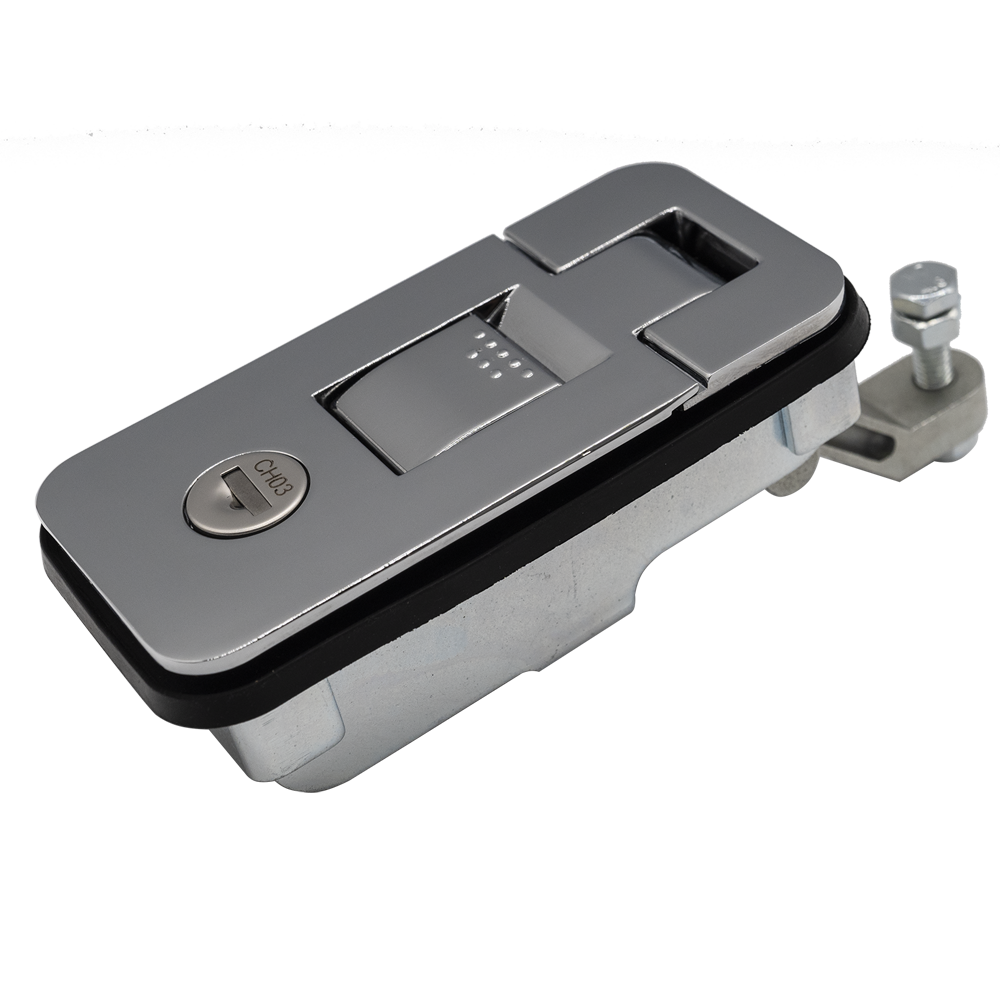

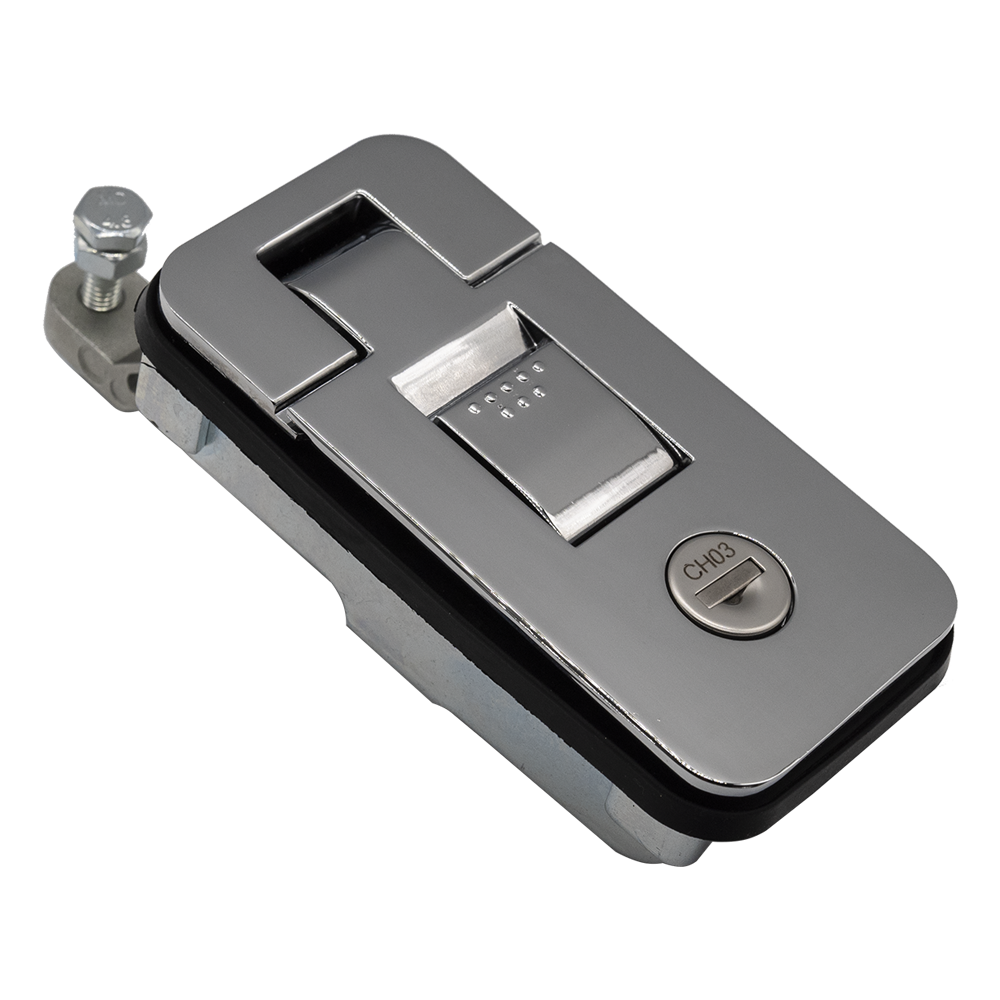

Compression Latch with Adjustable Grip ML100-2006

Lever Latch,Black Powder Coated or Chrome Plated Zinc Alloy Latch,with Adjustable Grip,Suitable for Ts= 1-11mm Panel,Door Cutout: 71*25mm and 91*35mm ,Easy Installation.ROHS compliance.

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

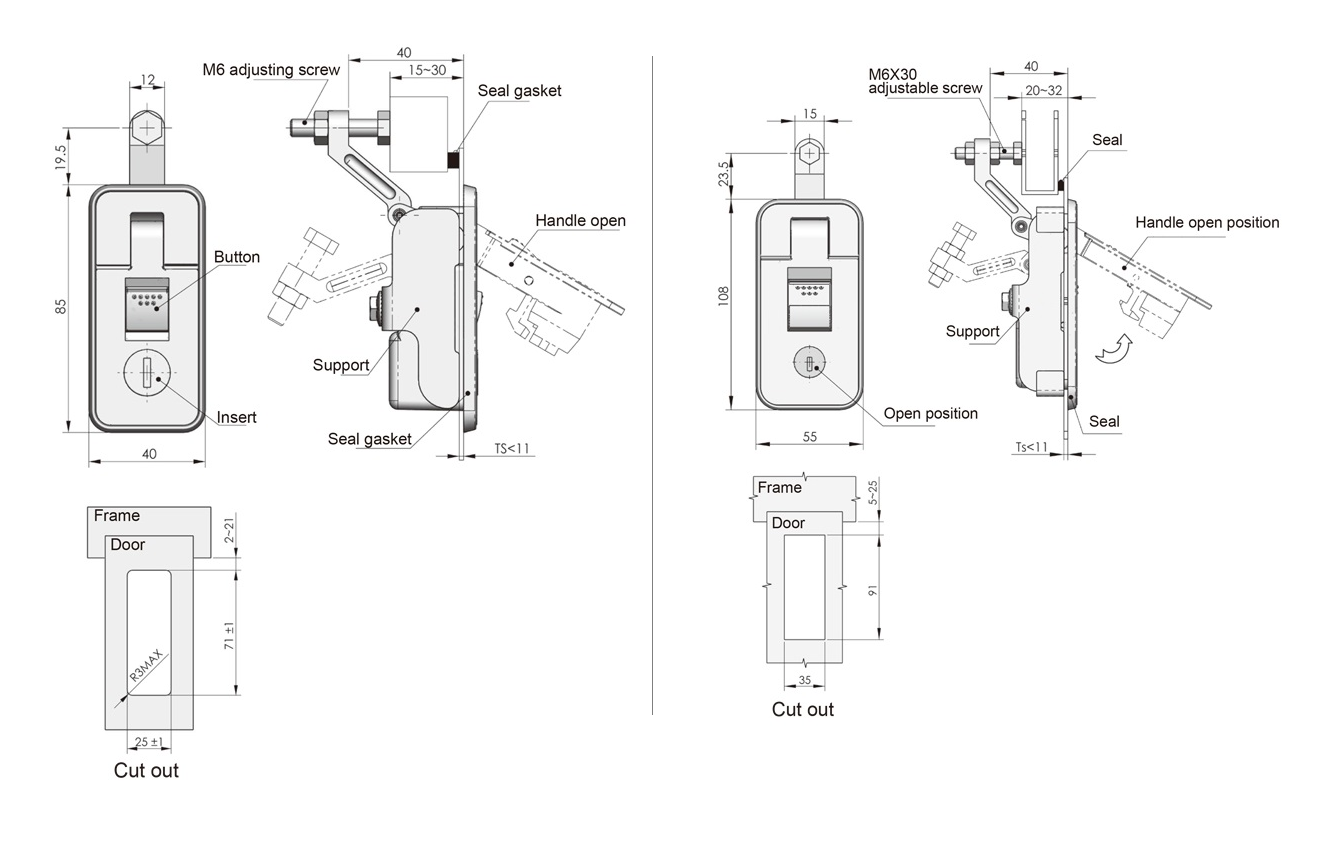

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Size

85*40mm

108*55mm

Surface

bright chrome plated

black
