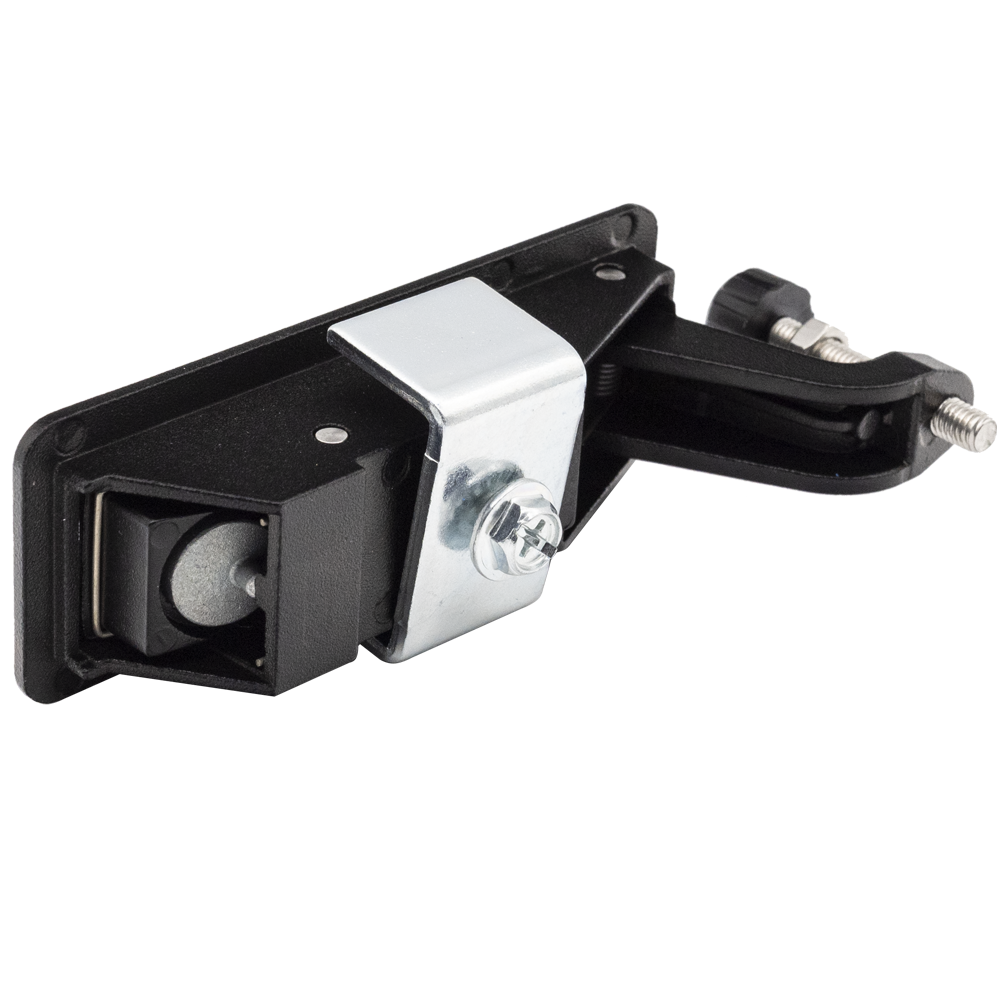

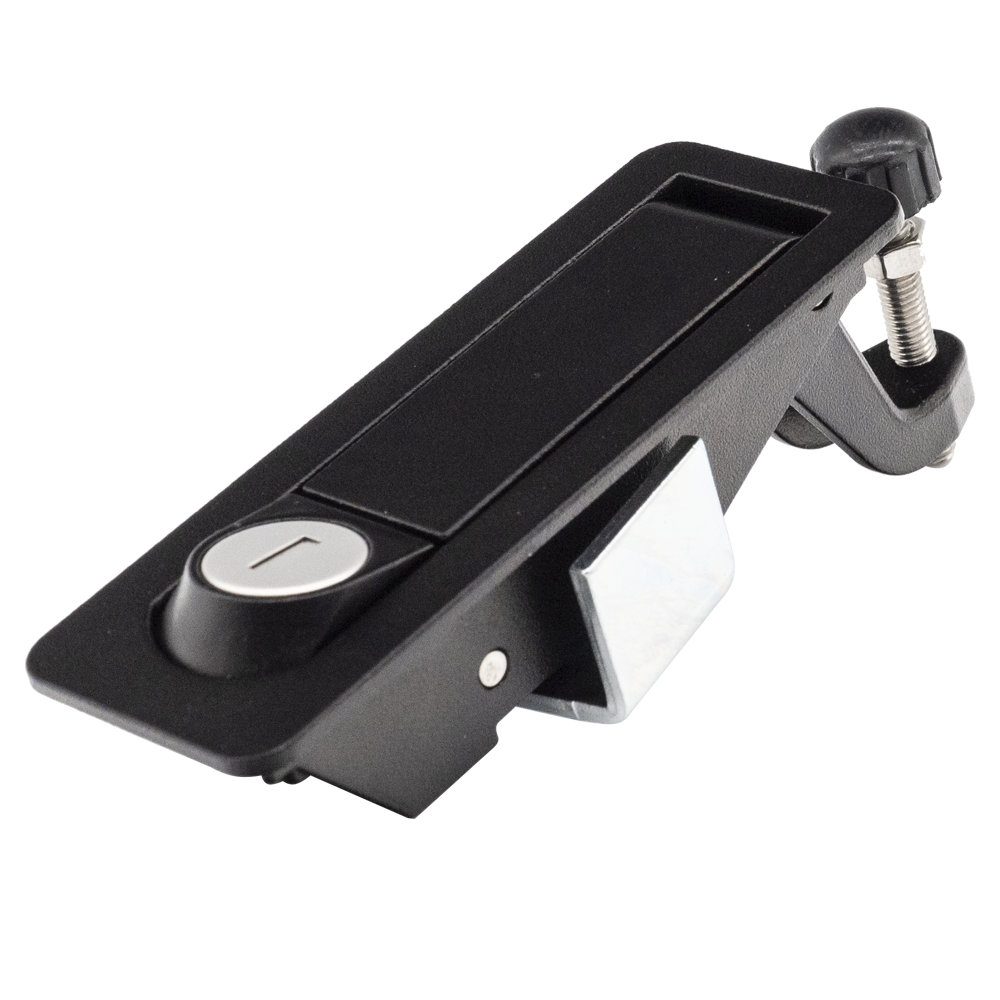

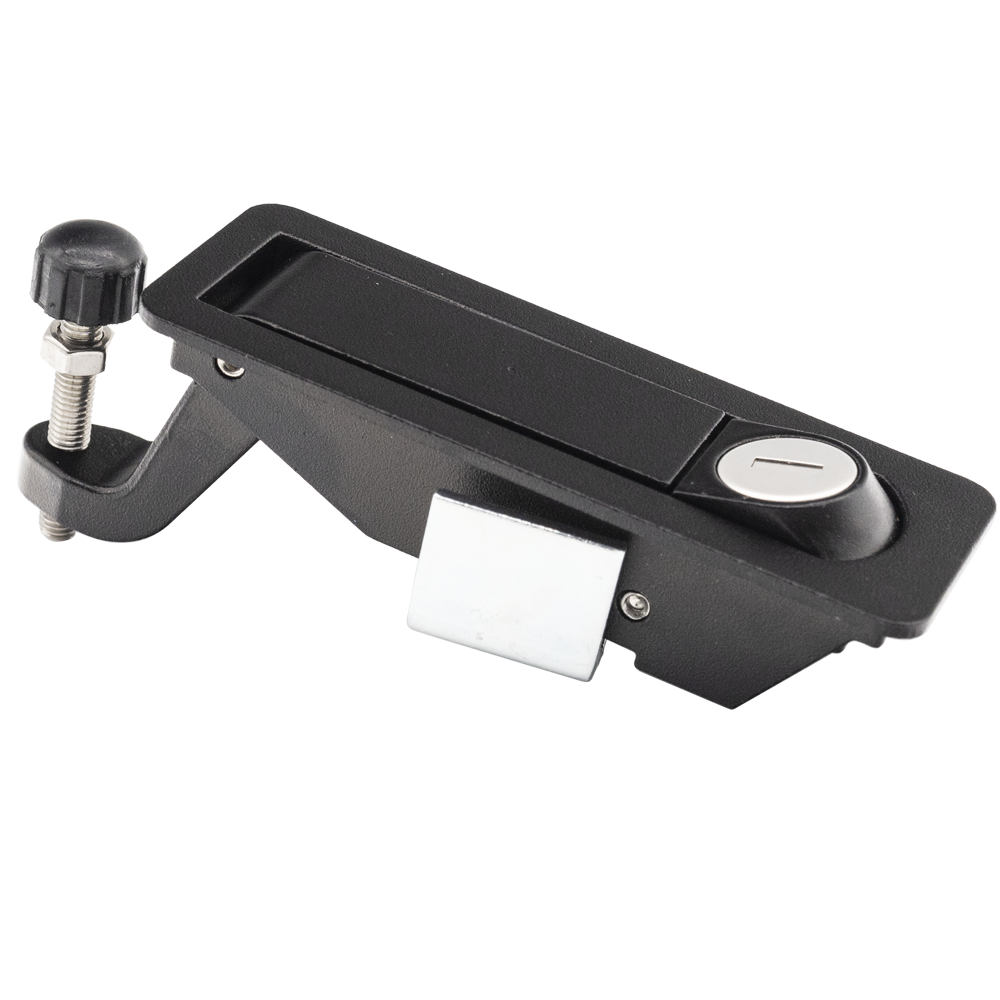

Compression Latch with Adjustable Grip ML100-2005

Level Lock,Flush Mount Latch,Black Powder Coated or Chrome Plated Zinc Alloy Latch,with Adjustable Grip of 1~50 mm,Door Cutout: 86*25mm,Easy Installation.ROHS compliance.

Download

Model Selection

clear

Default cam code is S1B4500,please kindly specify the cam code you need.
e.g.:center length=45mm,bending（downward） height=7mm,the cam code is S1B4507 or DS1B4507( cam with stopper);
center length=45mm,bending（upward） height=10mm,the cam code is S1B45N10or DS1B45N10(cam with stopper).

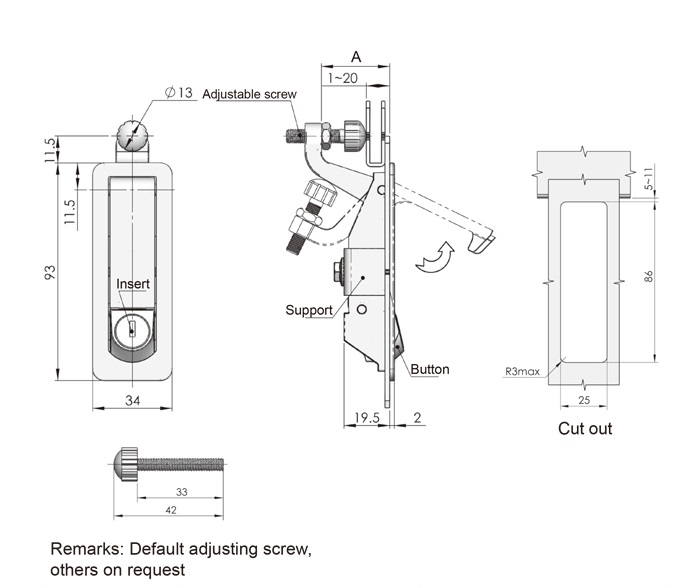

The standard cam for regular order is with a center length 45mm.You can check the drawing for details.
For other special cam ,it takes extra production time,please kindly contact us for details.

Finish

Black Powder coated

chrome plated

A dimension

A=29

A=50

Key option

with key

without key

Unexpected quotation for large order

Do you need a quote?

For orders with large quantities, "more than 100 or 500 pcs", clicking buy will automatically send a request, and we will quote you separately. Or send an email to Sales@Mineon.de and we will reply within 24 hours.
